MicroFit MFHLP31870 Replaces the Internormen 01E45080G30EP

MICROFIT MFHLP31870
MICROFIT MFHLP31870

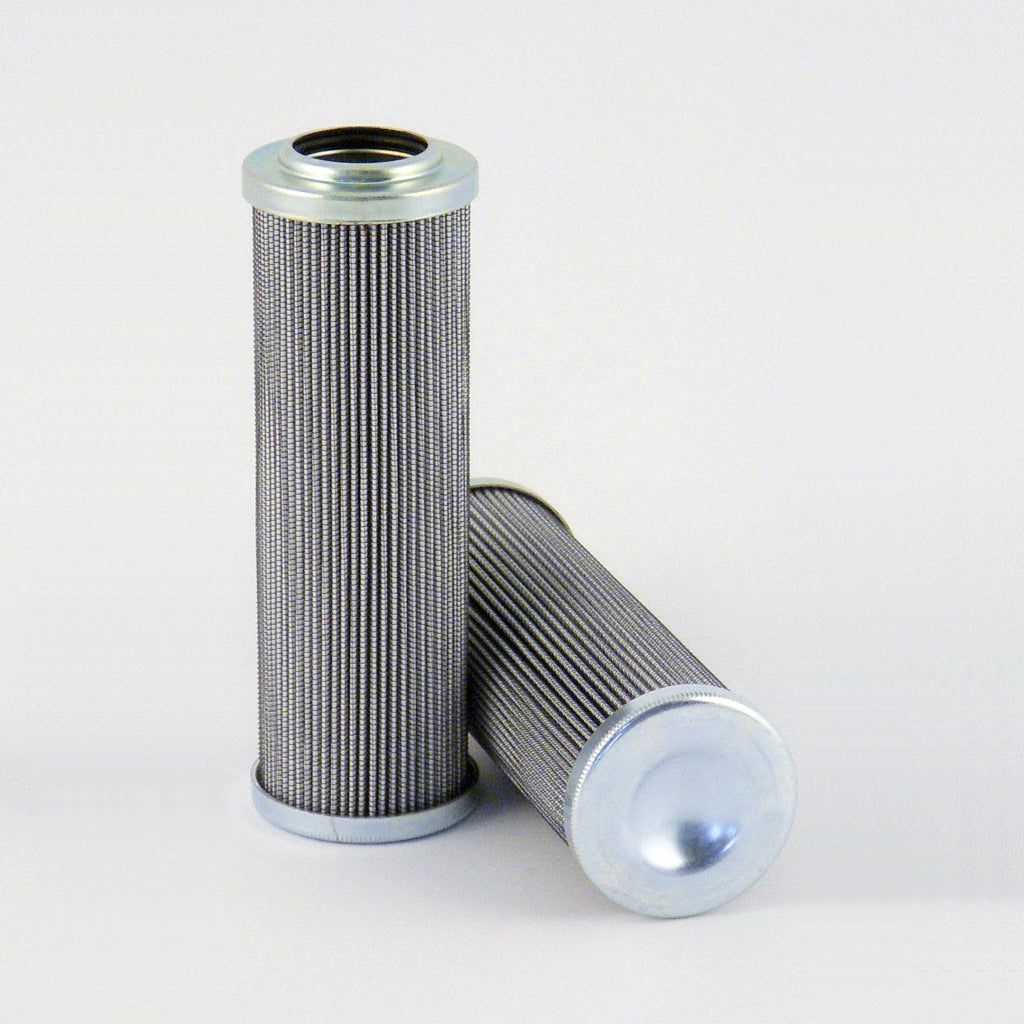

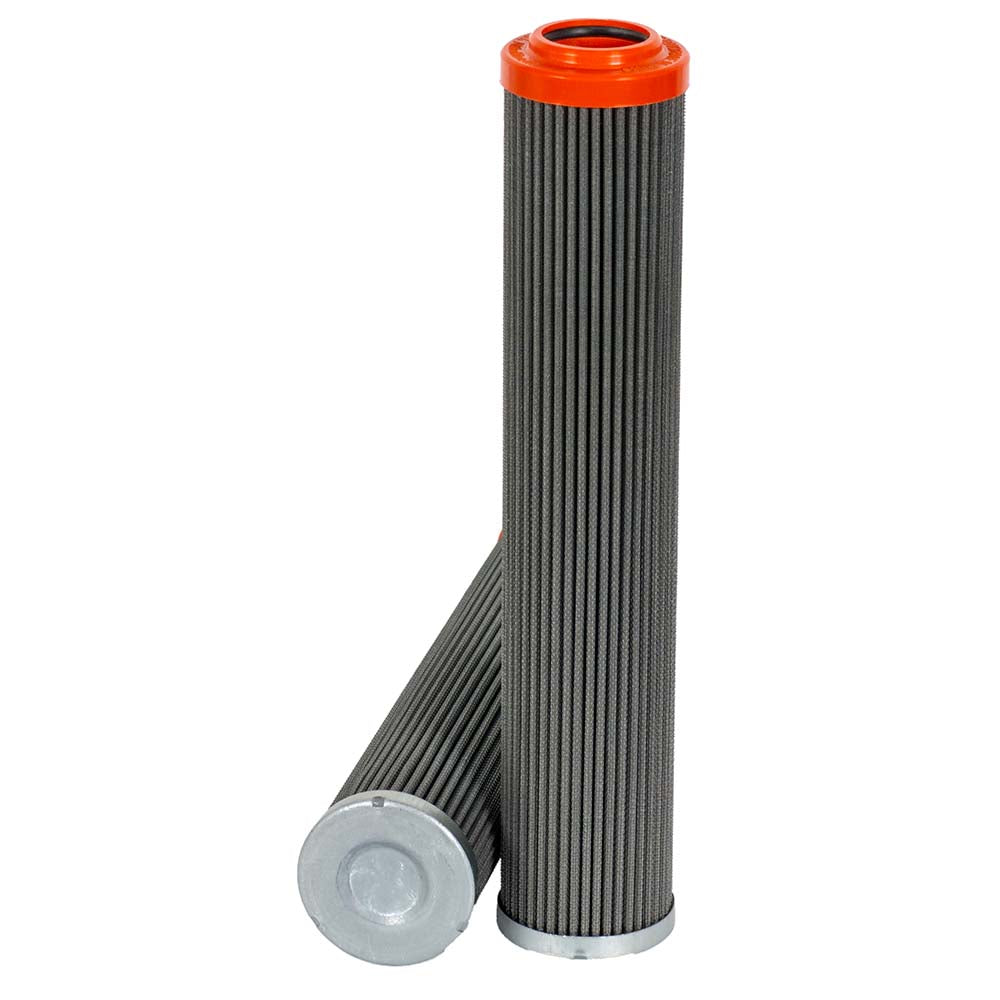

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31870 Pressure Filter | Replaces the Internormen 01E45080G30EP

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31870 is the MICROFIT® approved replacement to the Internormen 01E45080G30EP. Engineered and manufactured in Great Britain the MFHLP31870

Price Match
$160.00
5.05 lbs
0.053 ft³
United Kingdom
8421.99.90
2.29 lbs
0.053 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31870 is the MICROFIT® approved replacement to the Internormen 01E45080G30EP. Engineered and manufactured in Great Britain the MFHLP31870

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 180µ
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 16 5/16"
Δ Collapse Pressure 435.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 01E45080G30EP

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
80µ
Efficiency 2
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 16.34 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
