MicroFit MFHR55197 Replaces the Eppensteiner 1.0018H10SLA000P

MICROFIT MFHR55197
MICROFIT MFHR55197
Representative product image Product image feedback

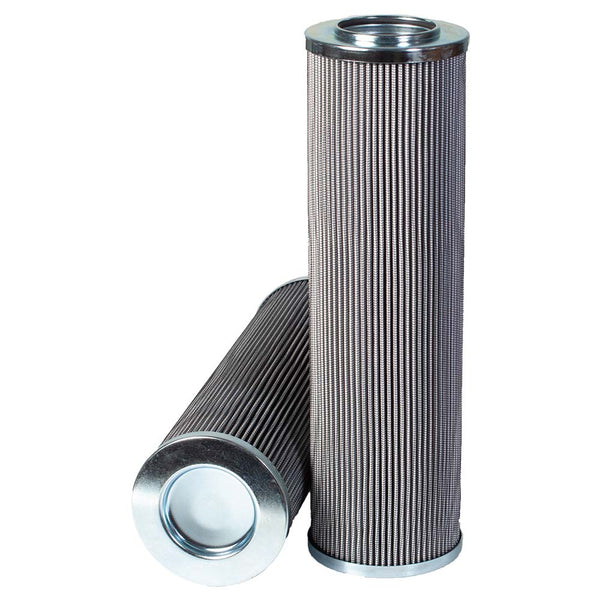

MicroFit® UltraGen III MFHR55197 Return Filter | Replaces the Eppensteiner 1.0018H10SLA000P

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR55197 is the MICROFIT® approved replacement to the Eppensteiner 1.0018H10SLA000P. Engineered and manufactured in Great Britain the MFHR55197

Price Match
$141.00
4.23 lbs
0.056 ft³
United Kingdom
8421.99.90
1.92 lbs
0.056 ft³
Italy
8421.99.90
1.85 lbs
0.116 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR55197 is the MICROFIT® approved replacement to the Eppensteiner 1.0018H10SLA000P. Engineered and manufactured in Great Britain the MFHR55197

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 1/8"
Inner Diameter 1 11/16"
Length 9 13/16"
Δ Collapse Pressure 435.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Eppensteiner Brand Logo

Same Fit-Form & Function

As the Genuine Eppensteiner 1.0018H10SLA000P

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 3.15 in
Inner Diameter 1.66 in
Length 9.8 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
