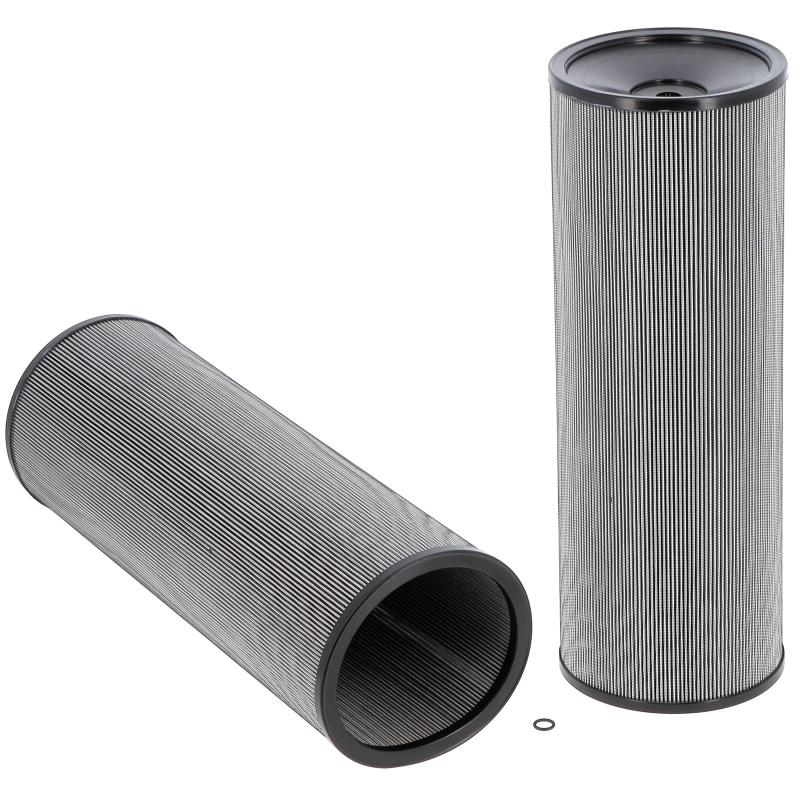

Specification

StyleFilter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 7.68 in
Inner Diameter 6.48 in
Length 21.46 in
MediaGlass Fiber
Flow DirectionIN-OUT
Seal MaterialNitrile
Temperature Range -20 - +210°F

Approved Product

Find out more
UFI Brand Logo

Same Fit-Form & Function

As the Genuine UFI 11300305

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Filter
Outer Diameter 7.68 in
Inner Diameter 6.48 in
Length 21.46 in
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -20 - +210°F
