Summary

Donaldson P171557 Alternative to the Rexroth 1457431605

1457431605
1457431605
Datasheet preview
Watch video
▶
Representative product image Product image feedback

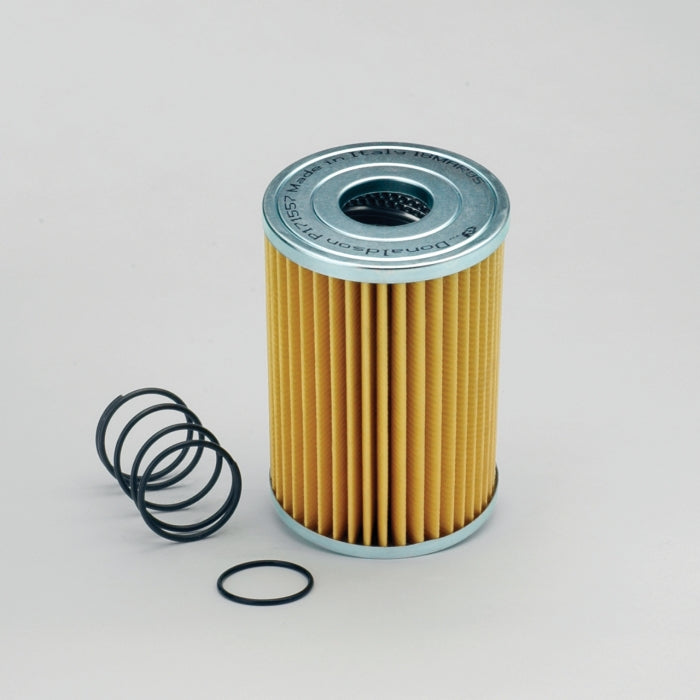

Donaldson P171557 Hydraulic Filter, Cartridge | Alternative to the Rexroth 1457431605

Brand: Donaldson
Price Match
$32.00
2.45 lbs
0.231 ft³
120 pcs
Italy
8421.29.80.90
1.76 lbs
0.137 ft³
120 pcs
Italy
8421.99.90
2.01 lbs
0.137 ft³
120 pcs
France
8421.99.90
2.67 lbs
0.294 ft³
120 pcs
United States
8421.29.80
Shipping Terms

Description

Genuine Donaldson P171557 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleHydraulic Filter, Cartridge
SeriesFIK
MediaCellulose
Inner Diameter 2 1/16"
Length 8"
Bypass Valve Setting (LR) 22 psi
Δ Collapse Burst 145.0 psi

Description

Genuine Donaldson P171557 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Cross References

To the genuine Rexroth 1457431605

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 5.12 in
Inner Diameter 2.03 in
Length 7.87 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
