Summary

Fleetguard FS19745 Replaces the Cim-Tek 70062

70062
70062
Representative product image Product image feedback

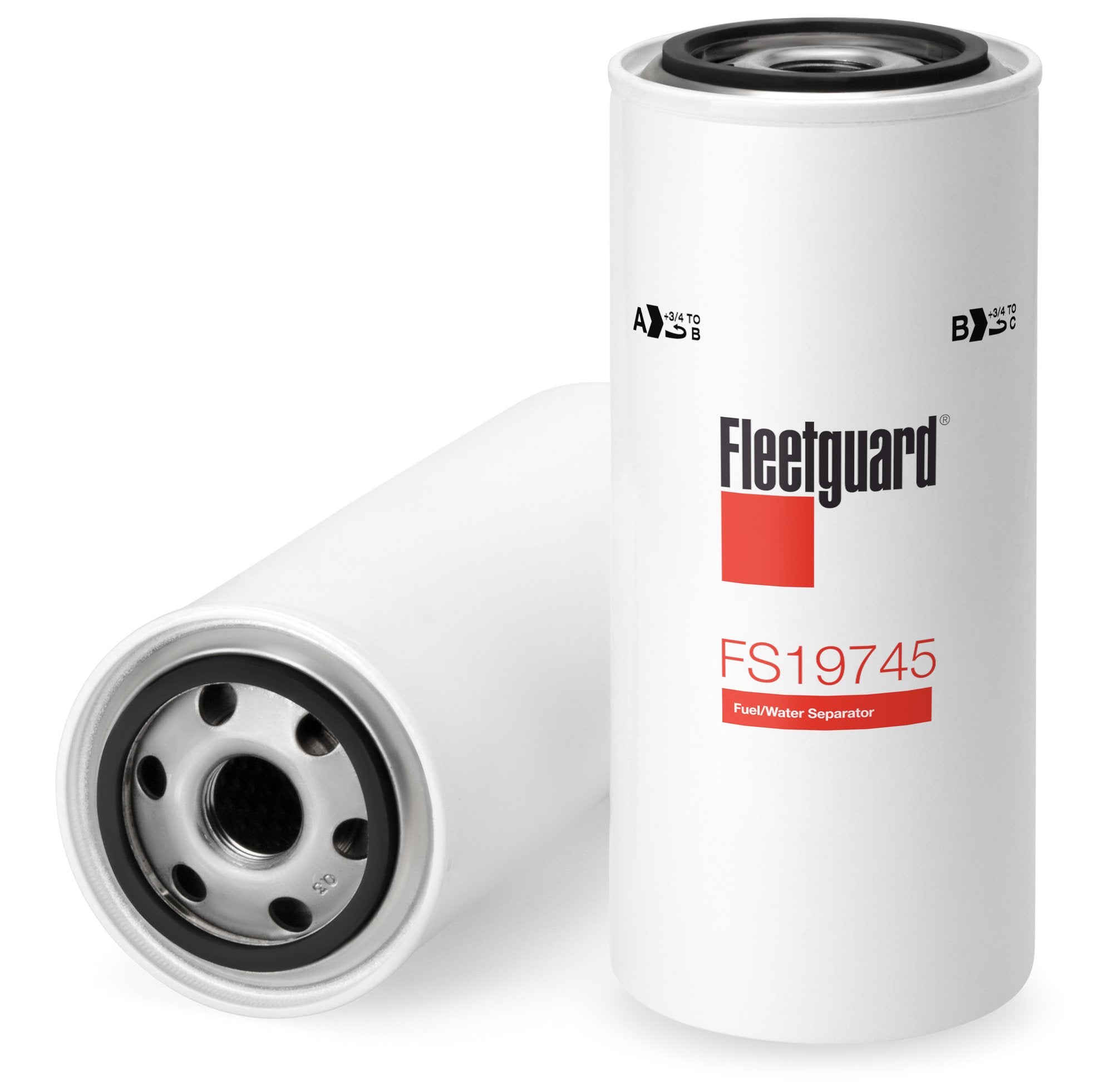

Fleetguard FS19745 Fuel Filter/Water Sep Spin-On | Replaces the Cim-Tek 70062

Brand: Fleetguard
Description

Fleetguard® FS19745 fuel water separator spin-on works to remove water and other particulates and ensures clean fuel is delivered to your engine.

Price Match
$36.00
1.58 lbs
0.097 ft³
12 pcs
United States
8421.23.00
2.01 lbs
0.069 ft³
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® FS19745 fuel water separator spin-on works to remove water and other particulates and ensures clean fuel is delivered to your engine.

Specification

StyleSpin-On Filter
MediaCellulose + Water Removal
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 3/4"
Length 8 3/8"
Thread1"-12 UNF
Δ Collapse Pressure 174.0 psi
Seal MaterialNitrile
Temperature Range +40 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Cim-Tek 70062

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 3.78 in
Inner Diameter
Length 8.39 in
Media Type Cellulose + Water Removal
Flow Direction
Thread 1"-12 UNF
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 174 PSI
Seal Nitrile
Temperature Range +40 - +210°F
