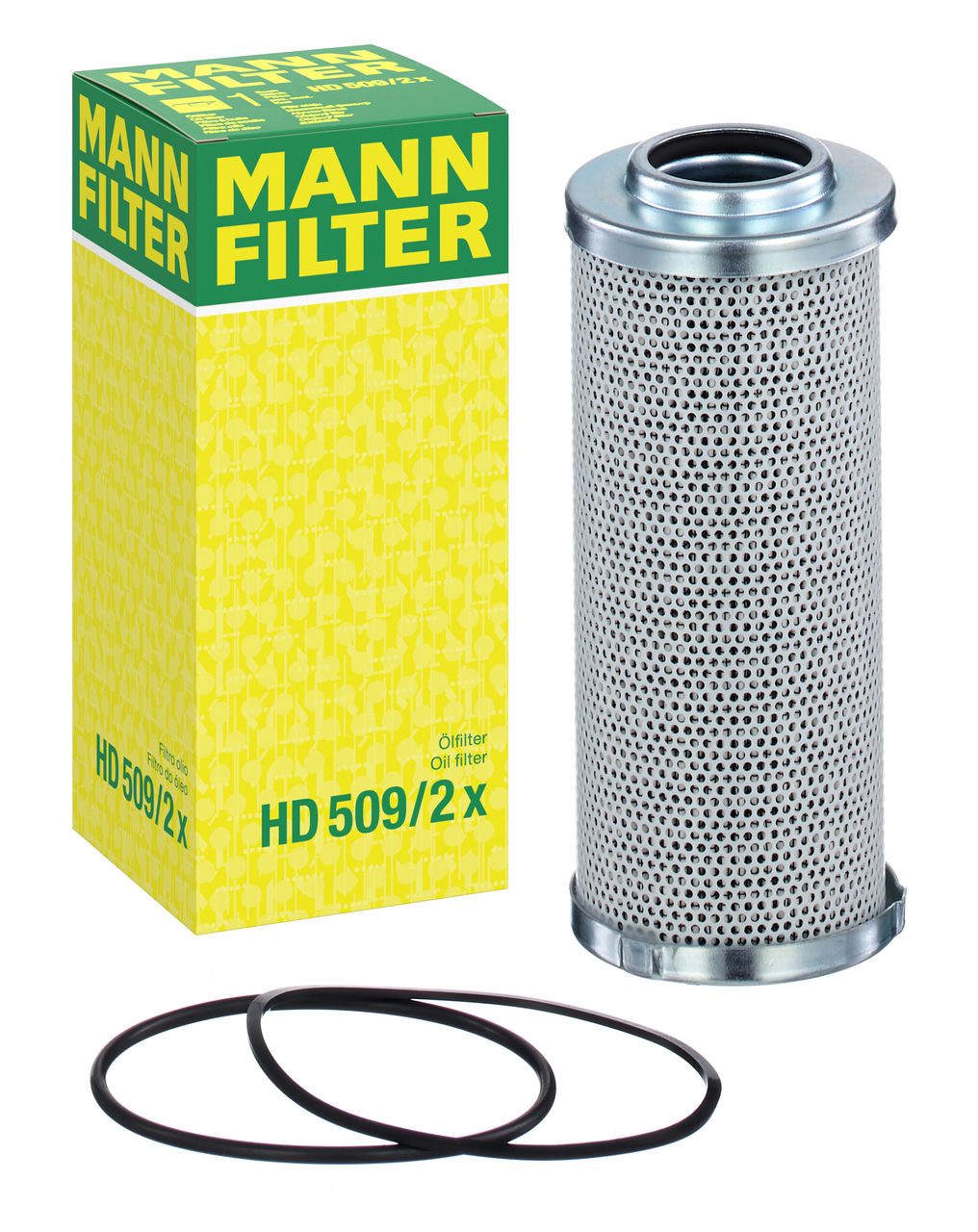

Mann Filter HD 509/2 x Replaces the UFI Filter 8505200
Mann Filter HD 509/2 x Replaces the UFI Filter 8505200
HD 509/2 x
Mann Filter
UFI Filter 8505200
Mann Filter
UFI Filter 8505200
Brand:
Mann Filter
Sort by:
Description
MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.
Ships in 3 Days
$39.00
Price$39.00/each
Shipped Friday, June 6
Fastest delivery Monday, June 9 Order within 12hrs 21mins
Fastest delivery Monday, June 9 Order within 12hrs 21mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $38.22 |
| 5 - 9 | $37.44 |
| 10+ | $36.66 |
0.44 lbs
8421.99.90
Germany
Description
MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.Specification
| Style | Pressure Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 1.97 in |
| Inner Diameter | 0.94 in |
| Length | 4.57 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 305 PSI |
| Seal Material | Viton |
| Temperature Range | -10 - +250°F |
Approved Product
Find out more
Same Fit-Form & Function
As the Genuine UFI Filter 8505200
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
