Mann Filter W 13 012 Replaces the Parker 926541

926541
926541
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

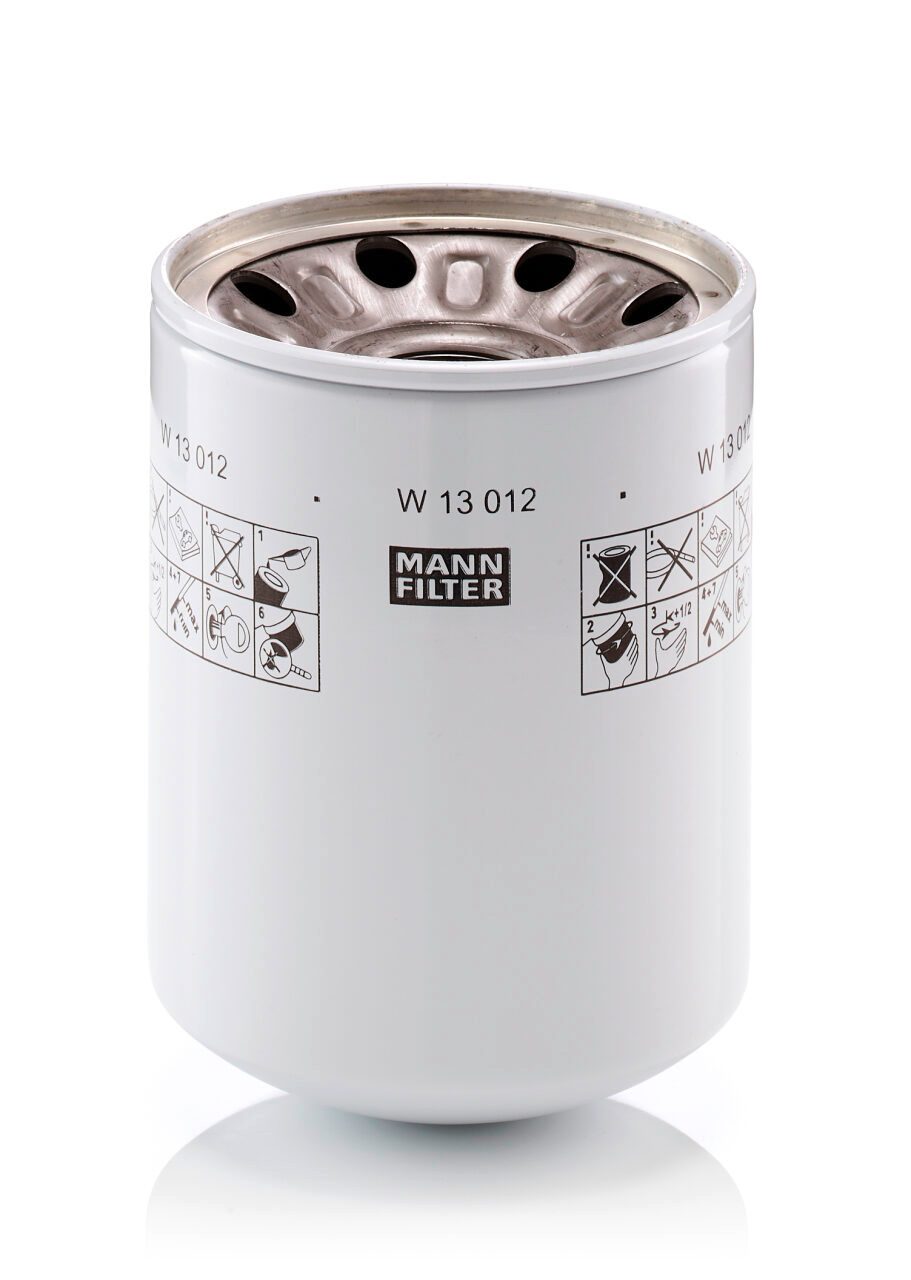

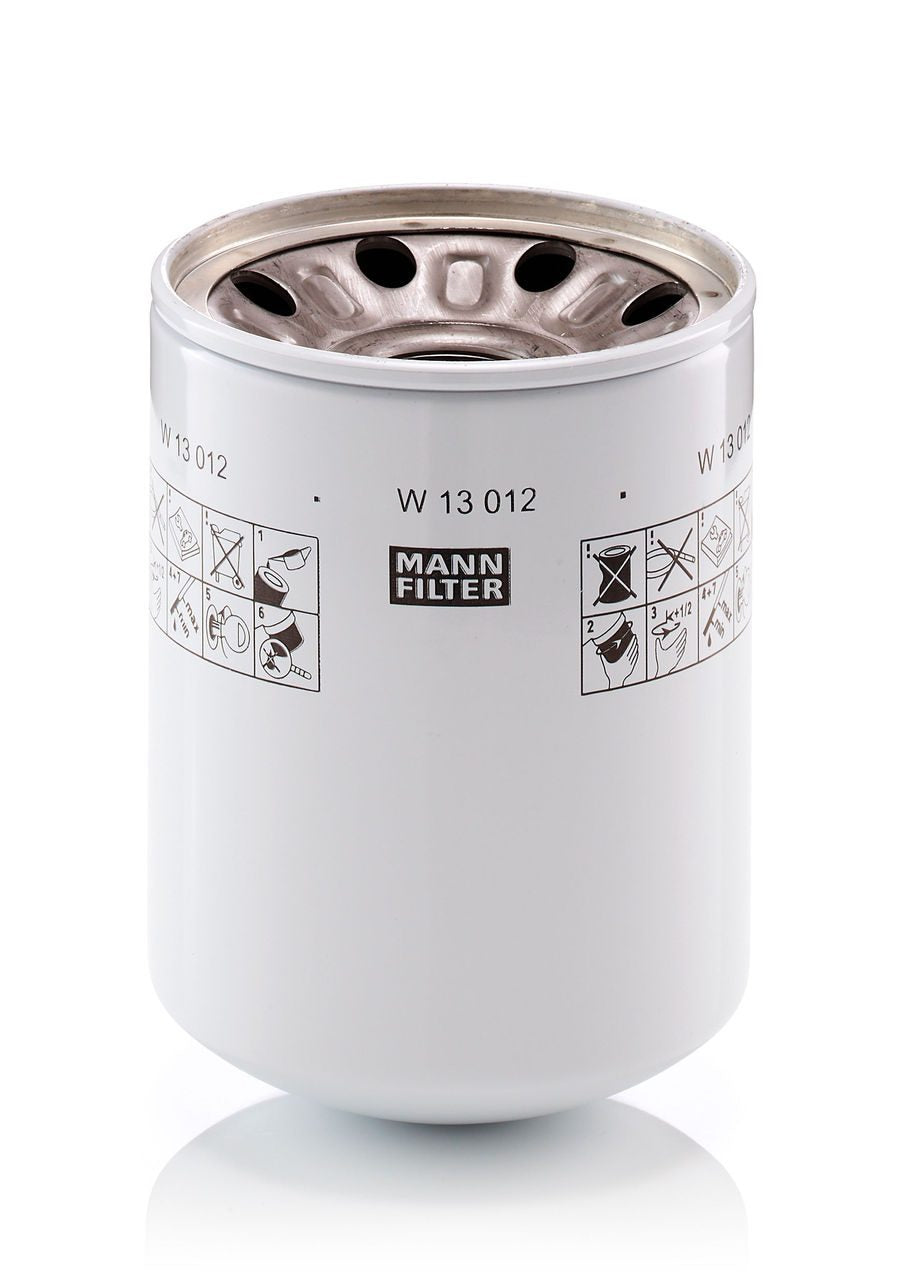

Mann Filter W 13 012 Hydraulics | Replaces the Parker 926541

Brand: Mann Filter
Description

MANN-FILTER hydraulic filters offer the highest filtration performance and ensure clean oil and thus trouble-free operation of the hydraulic system. Thanks to the filter medium, which is individually adapted to the intended application, the finest impurities are removed from the hydraulic fluid.

Price Match
$34.00
360 pcs
8421.99.90
2.6 lbs
0.113 ft³
6 pcs
360 pcs
United States
8421.29.80.90
360 pcs
United States
8421.99.90
3.15 lbs
0.099 ft³
360 pcs
Italy
8421.99.90
2.25 lbs
0.141 ft³
6 pcs
360 pcs
Mexico
8421.23.00
Shipping Terms

Description

MANN-FILTER hydraulic filters offer the highest filtration performance and ensure clean oil and thus trouble-free operation of the hydraulic system. Thanks to the filter medium, which is individually adapted to the intended application, the finest impurities are removed from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 5 1/16"
Dimension G 1 1/2-16 UN-2B
Dimension H 6 7/8"
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 926541

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 5.04 in
Inner Diameter
Length 6.69 in
Media Type Cellulose
Flow Direction
Thread 1 1/2"-16 UN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 203 PSI
Seal Nitrile
Temperature Range -20 - +210°F
