MicroFit MFHC60155 Replaces the Parker 944066Q

MICROFIT MFHC60155
MICROFIT MFHC60155
Representative product image Product image feedback

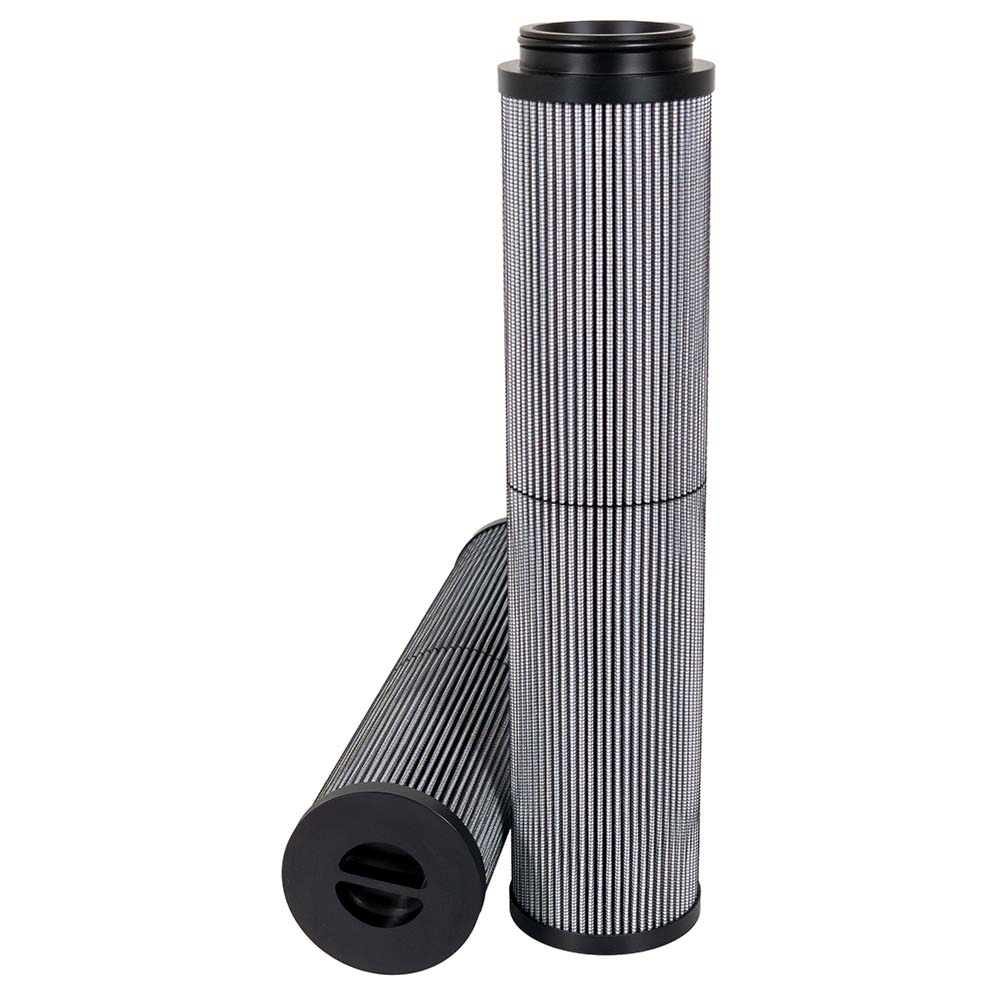

MicroFit® UltraGen III MFHC60155 Coreless Filter | Replaces the Parker 944066Q

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60155 is the MICROFIT® approved replacement to the Parker 944066Q. Engineered and manufactured in Great Britain the MFHC60155

Price Match
$182.00
2.6 lbs
0.106 ft³
United Kingdom
8421.99.90
1.19 lbs
0.107 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60155 is the MICROFIT® approved replacement to the Parker 944066Q. Engineered and manufactured in Great Britain the MFHC60155

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 13/16"
Inner Diameter 2 9/16"
Length 12 3/8"
Δ Collapse Pressure 145.0 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 944066Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Coreless Filter
Outer Diameter 3.84 in
Inner Diameter 2.54 in
Length 12.4 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Viton
Temperature Range -10 - +250°F
