Stauff AD-033-B-80-B Replaces the Stauff AD033B80B

Stauff AD033B80B
Stauff AD033B80B
Representative product image Product image feedback

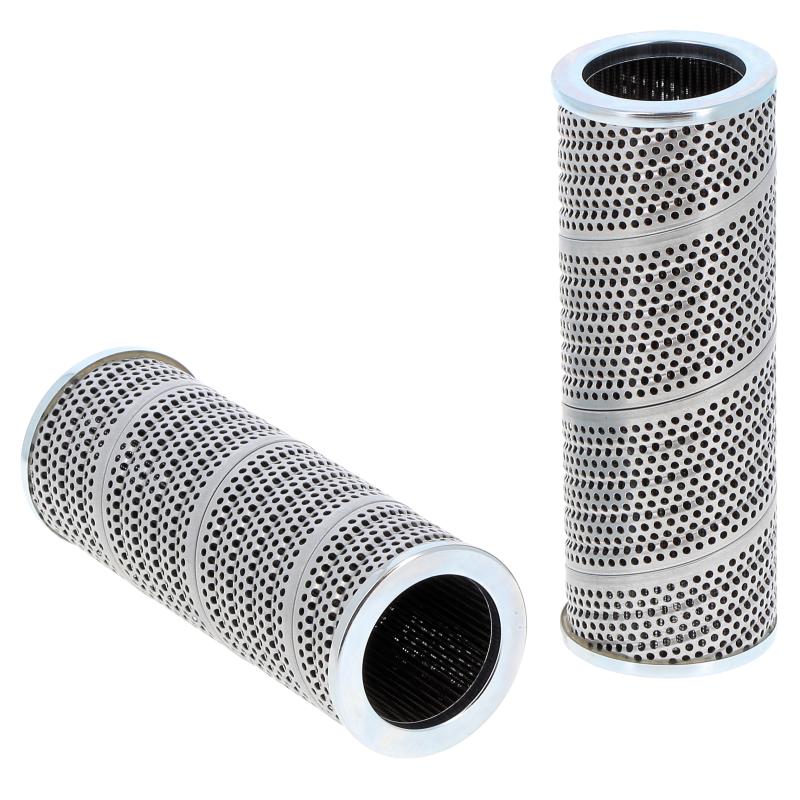

Stauff AD-033-B-80-B Suction Filter

Brand: Stauff
Description

Replacement Filter Element for Suction-Line Filters Micron Rating: 80 µm Material: Stainless Mesh Outer Diameter (mm): 89 Inner Diameter (mm): 59 Length (mm): 226 Sealing: NBR, β ratio >2

Price Match
$177.00
Germany
8421.99.90
0.88 lbs
0.055 ft³
Italy
8421.99.90
0.93 lbs
0.094 ft³
France
8421.99.90
0.88 lbs
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Suction-Line Filters Micron Rating: 80 µm Material: Stainless Mesh Outer Diameter (mm): 89 Inner Diameter (mm): 59 Length (mm): 226 Sealing: NBR, β ratio >2

Specification

StyleSuction Filter
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 3 1/4"
Inner Diameter 2 5/16"
Length 8 15/16"
Temperature Range -10 - +250°F
Stauff Brand Logo

Stauff Product

Genuine Stauff AD-033-B-80-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Filter
Outer Diameter 3.27 in
Inner Diameter 2.32 in
Length 8.94 in
Media Type Wire Mesh
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range -10 - +250°F
