Fleetguard AF25237 Replacement Air, Primary Magnum Rs

Fleetguard AF25237
Fleetguard AF25237
Representative product image Product image feedback

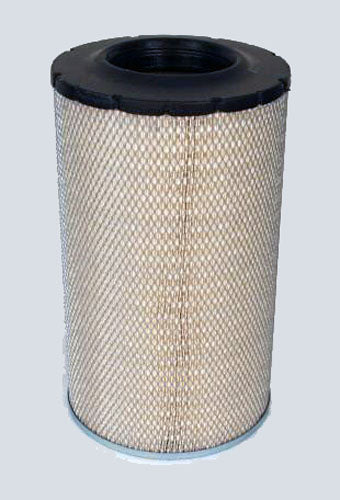

Fleetguard AF25237 Air, Primary Magnum Rs

Brand: Fleetguard
Description

​Fleetguard® AF25237 axial seal primary air filter ensures a proper seal and prevent leaks to prevent airborne contaminants from reaching the combustion chamber.

Price Match
$70.00
5.61 lbs
1.091 ft³
64 pcs
France
8421.31.00
5.36 lbs
1.107 ft³
64 pcs
Czechia
8421.31.00.90
6.17 lbs
1.151 ft³
64 pcs
France
8421.99.90
64 pcs
8421.99.90
Shipping Terms

Description

​Fleetguard® AF25237 axial seal primary air filter ensures a proper seal and prevent leaks to prevent airborne contaminants from reaching the combustion chamber.

Specification

StyleAir, Primary Magnum Rs
MediaNon-Flame Resistant
Outer Diameter 9 5/8"
Inner Diameter 5"
Length 16 9/16"
Seal MaterialAxial
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard AF25237

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Air, Primary Magnum Rs
Outer Diameter 9.65 in
Inner Diameter 4.98 in
Length 16.56 in
Media Type Non-Flame Resistant
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Axial
Temperature Range
