Summary

Fleetguard HF28989 Replaces the Baldwin BT8315

BT8315
BT8315
Representative product image Product image feedback

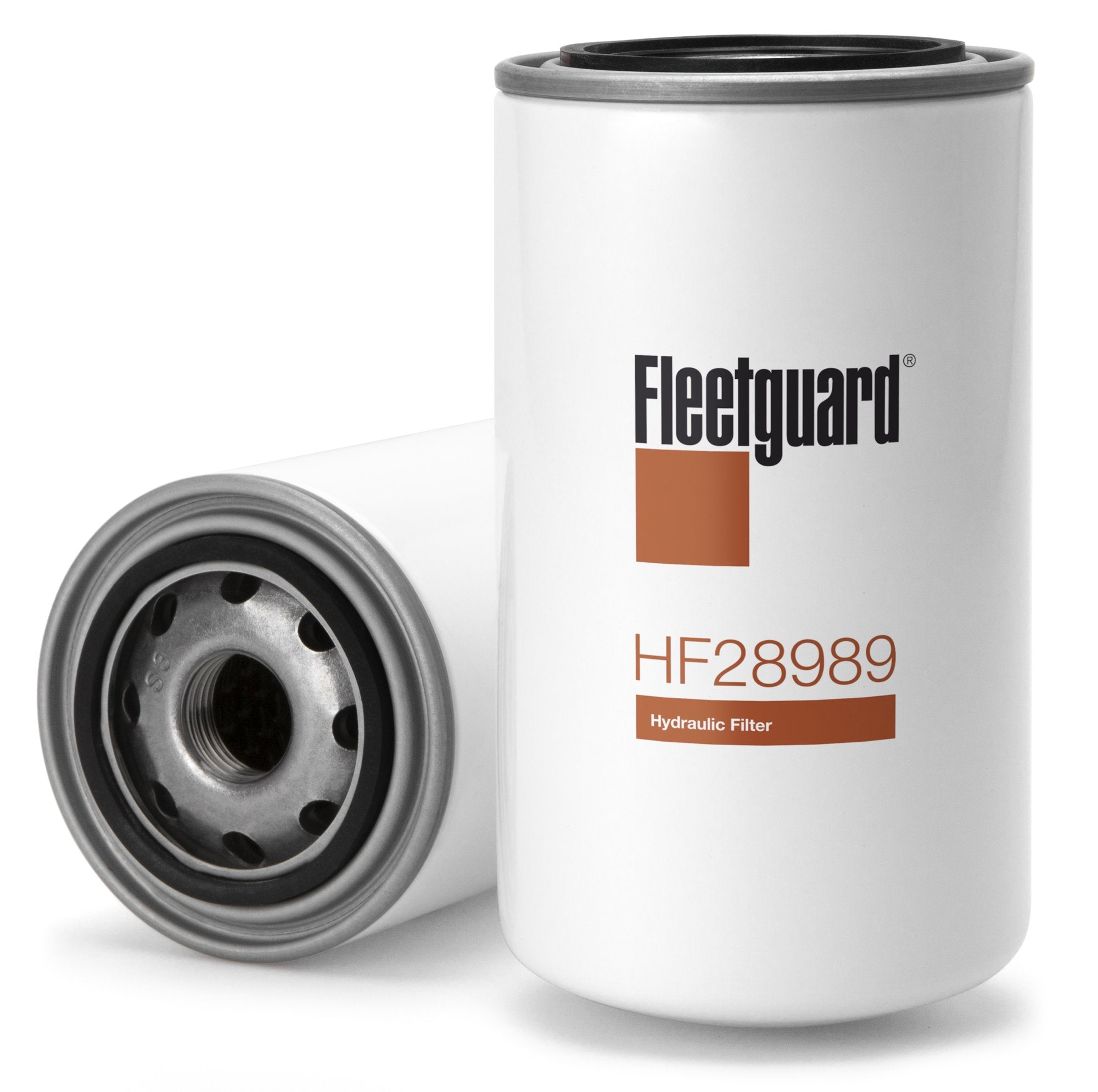

Fleetguard HF28989 Hydraulic Filters | Replaces the Baldwin BT8315

Brand: Fleetguard
Description

Fleetguard® HF28989 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$36.00
1.69 lbs
0.064 ft³
12 pcs
540 pcs
France
8421.29.80
0.86 lbs
0.058 ft³
540 pcs
Italy
8421.99.90
1.87 lbs
0.071 ft³
12 pcs
540 pcs
Indonesia
8421.29.80.90
540 pcs
Germany
8421.23.00
2.56 lbs
0.085 ft³
540 pcs
France
8421.99.90
Shipping Terms

Description

Fleetguard® HF28989 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 3/4"
Length 7 3/16"
Thread1"-12 UNF
Bypass Pressure 29 psi
Δ Collapse Pressure 493.1 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Baldwin BT8315

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 3.74 in
Inner Diameter
Length 7.2 in
Media Type Glass Fiber
Flow Direction
Thread 1"-12 UNF
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

29 PSI
Collapse Pressure 493 PSI
Seal Viton
Temperature Range -10 - +250°F
