MicroFit MFHLP30706 Replaces the Sofima CH3204MCV11

MICROFIT MFHLP30706
MICROFIT MFHLP30706
Representative product image Product image feedback

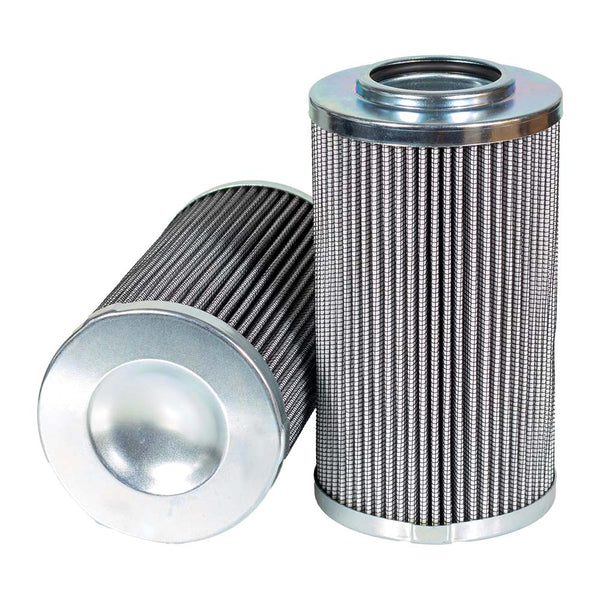

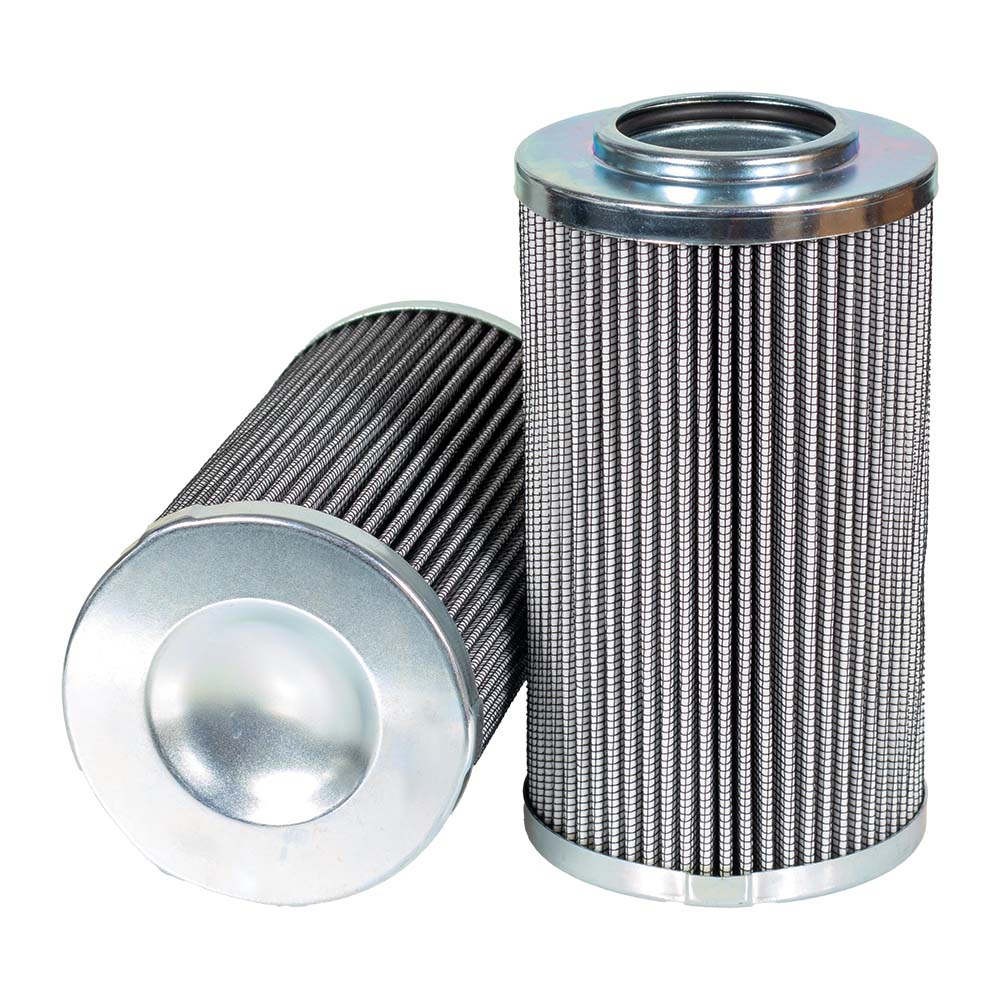

MicroFit® UltraGen III MFHLP30706 Pressure Filter | Replaces the Sofima CH3204MCV11

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30706 is the MICROFIT® approved replacement to the Sofima CH3204MCV11. Engineered and manufactured in Great Britain the MFHLP30706

Price Match
$237.00
10.53 lbs
0.112 ft³
United Kingdom
8421.99.90
4.78 lbs
0.112 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30706 is the MICROFIT® approved replacement to the Sofima CH3204MCV11. Engineered and manufactured in Great Britain the MFHLP30706

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 3 1/16"
Inner Diameter 1 5/8"
Length 20 1/2"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Sofima Brand Logo

Same Fit-Form & Function

As the Genuine Sofima CH3204MCV11

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.59 in
Length 20.47 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
