Schroeder CZ3 Replacement Special Filter

Schroeder CZ3
Schroeder CZ3
Representative product image Product image feedback

Schroeder CZ3 Special Filter

Brand: Schroeder
Description

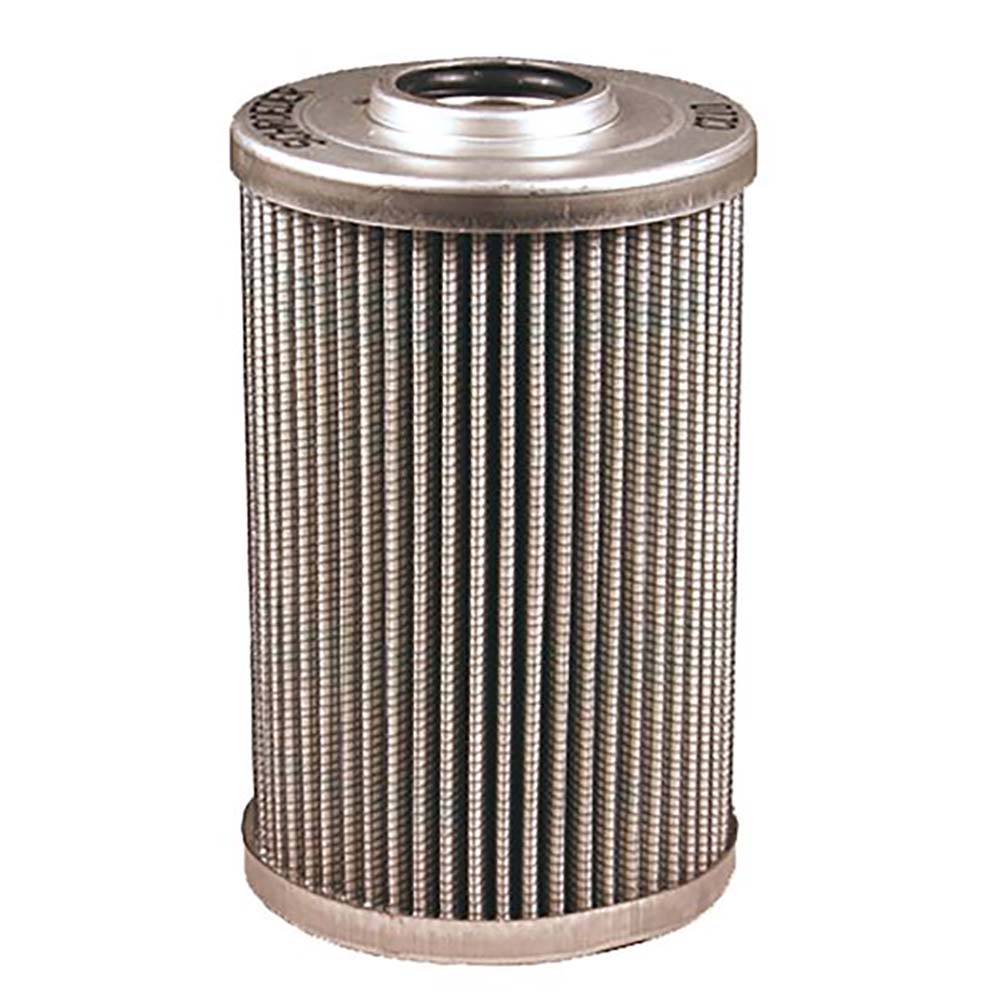

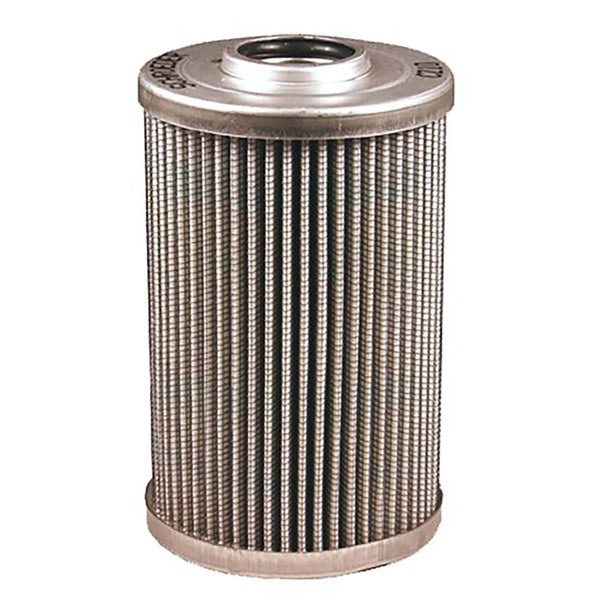

Original Schroeder CZ3 Replacement Hydraulic Filter

Price Match
$129.00
United States
8421.99.90
0.57 lbs
0.043 ft³
France
8421.99.90
0.66 lbs
0.022 ft³
Italy
8421.99.90
0.66 lbs
United Kingdom
8421.99.90
Shipping Terms

Description

Original Schroeder CZ3 Replacement Hydraulic Filter

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 2 7/8"
Inner Diameter 1 1/16"
Length 4 5/8"
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Schroeder Brand Logo

Schroeder Product

Genuine Schroeder CZ3

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Special Filter
Outer Diameter 2.87 in
Inner Diameter 1.07 in
Length 4.65 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
