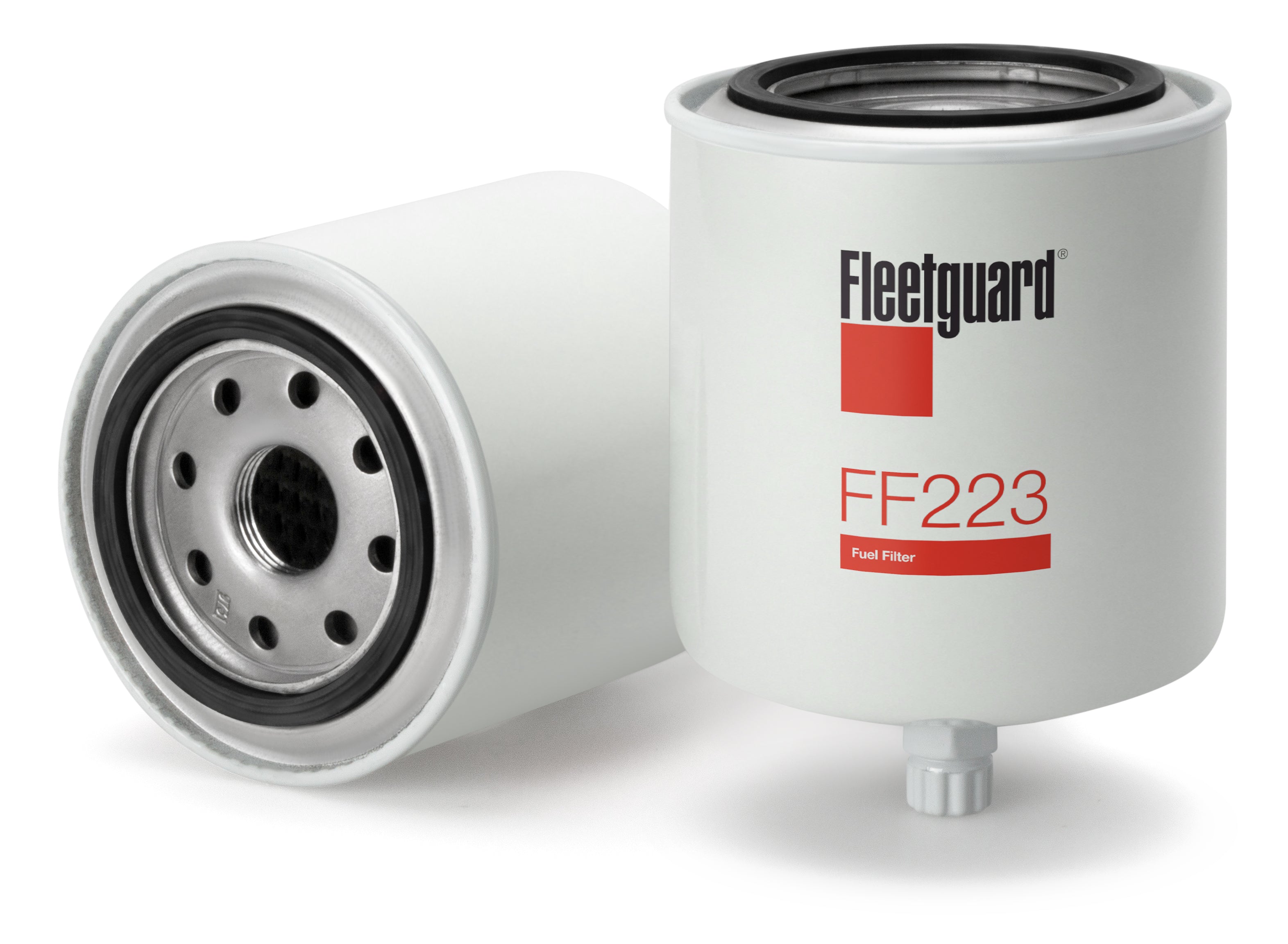

Fleetguard FF223 Replacement Fuel, Spin-On

Fleetguard FF223
Fleetguard FF223
Representative product image Product image feedback

Fleetguard FF223 Fuel, Spin-On

Brand: Fleetguard
Description

Fleetguard® FF223 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.

Price Match
$22.00
1.02 lbs
0.069 ft³
Mexico
8421.99.90
1.06 lbs
0.048 ft³
France
8421.99.90
0.95 lbs
0.042 ft³
12 pcs
United States
8421.23.00.90
Shipping Terms

Description

Fleetguard® FF223 spin-on fuel filter delivers superior performance using proven media technology, removing harmful contaminants. Fleetguard fuel filters ensure optimal fuel system protection to meet or exceed OEM specifications.

Specification

StyleFuel, Spin-On
Efficiency 120µ @ β100
Outer Diameter 3 11/16"
Inner Diameter 2 7/16"
Length 4 15/16"
Thread15/16-16 UN-2B
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard FF223

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β100
Efficiency 2
Style Fuel, Spin-On
Outer Diameter 3.67 in
Inner Diameter 2.46 in
Length 4.94 in
Media Type
Flow Direction
Thread 15/16-16 UN-2B
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
