MicroFit MFHC60031 Replaces the Pall HC9404FCS26H

HC9404FCS26H
HC9404FCS26H
Representative product image Product image feedback

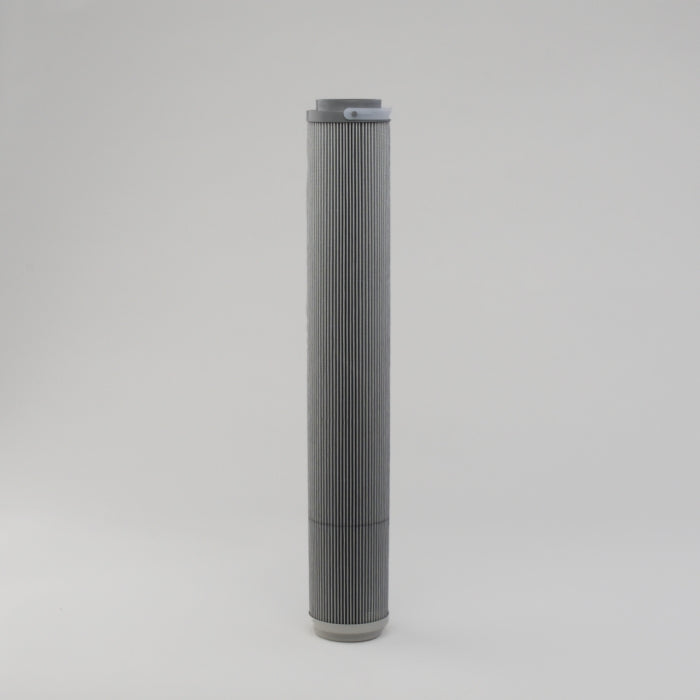

MicroFit® UltraGen III MFHC60031 Coreless Filter | Replaces the Pall HC9404FCS26H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60031 is the MICROFIT® approved replacement to the Pall HC9404FCS26H. Engineered and manufactured in Great Britain the MFHC60031

Price Match
$300.00
5.25 lbs
0.214 ft³
1 pcs
United Kingdom
8421.99.90
2.56 lbs
0.319 ft³
1 pcs
United States
8421.29.80.90
2.4 lbs
0.216 ft³
1 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60031 is the MICROFIT® approved replacement to the Pall HC9404FCS26H. Engineered and manufactured in Great Britain the MFHC60031

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 13/16"
Inner Diameter 2 9/16"
Length 25 1/16"
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC9404FCS26H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Coreless Filter
Outer Diameter 3.84 in
Inner Diameter 2.54 in
Length 25.08 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
