MicroFit MFHLP30996 Replaces the Pall HC9650FKS8H

MICROFIT MFHLP30996
MICROFIT MFHLP30996

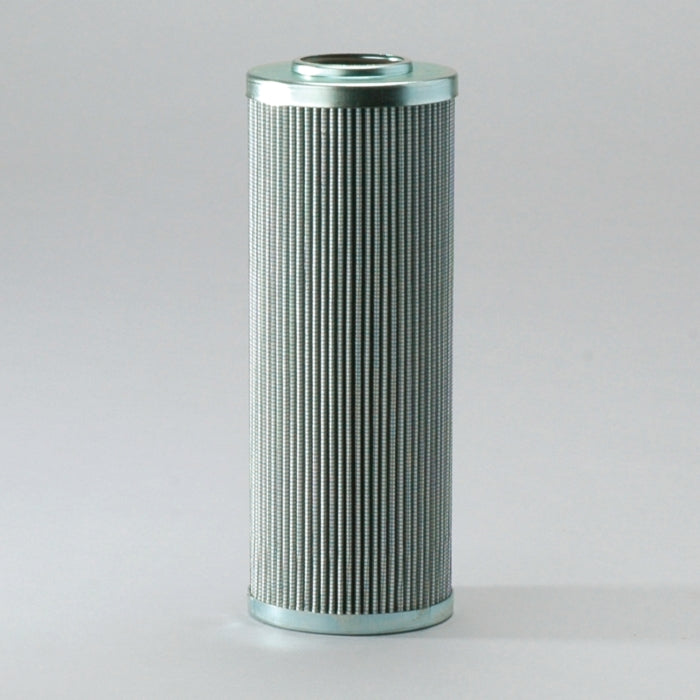

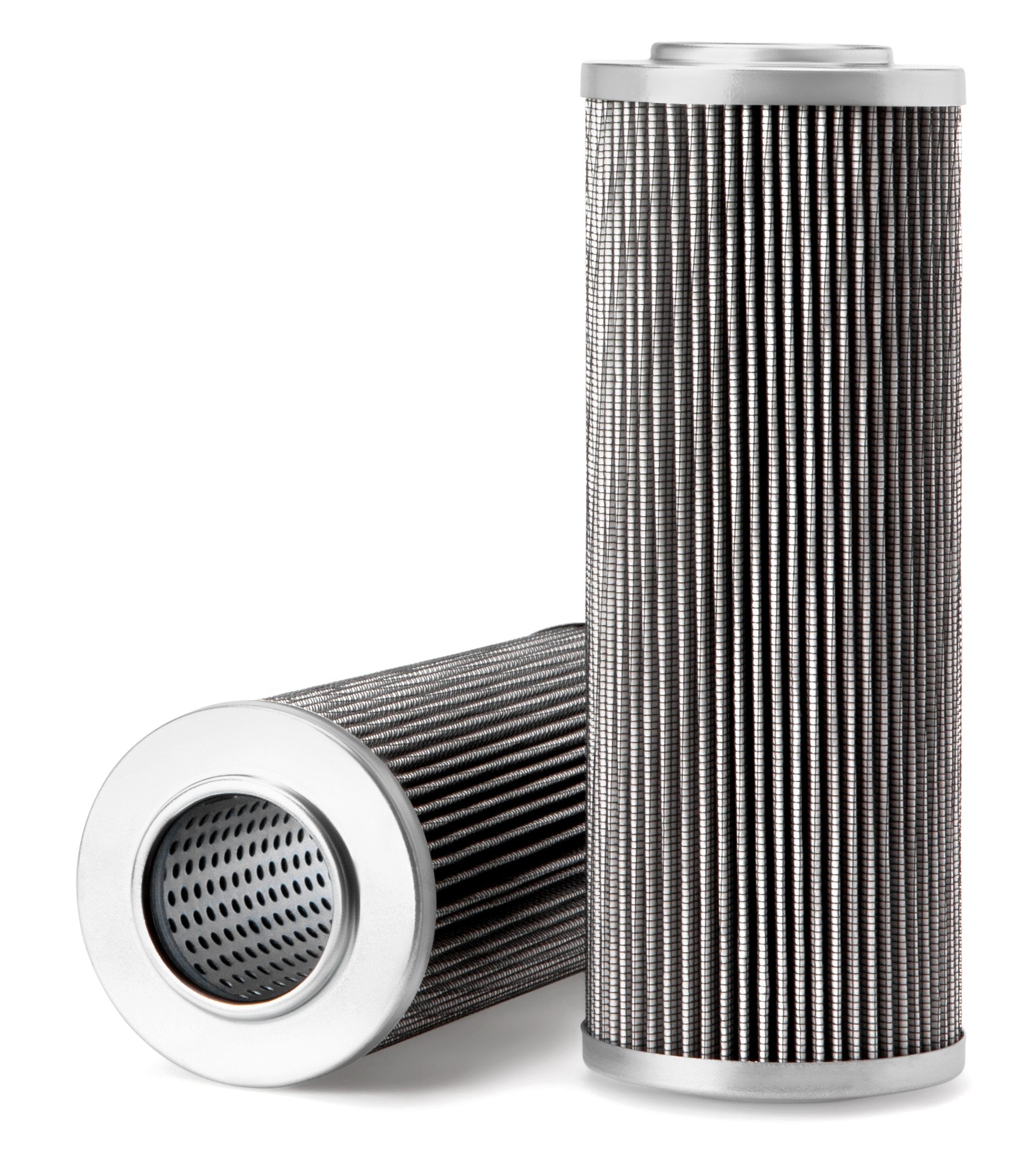

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP30996 Pressure Filter | Replaces the Pall HC9650FKS8H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30996 is the MICROFIT® approved replacement to the Pall HC9650FKS8H. Engineered and manufactured in Great Britain the MFHLP30996

Price Match
$103.00
2.53 lbs
0.046 ft³
624 pcs
United Kingdom
8421.99.90
1.17 lbs
0.081 ft³
624 pcs
United States
8421.29.80.90
1.15 lbs
0.046 ft³
624 pcs
Italy
8421.99.90
1.19 lbs
0.084 ft³
624 pcs
France
8421.99.90
624 pcs
United States
8421.99.90
2.16 lbs
0.233 ft³
624 pcs
Mexico
8421.23.00
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30996 is the MICROFIT® approved replacement to the Pall HC9650FKS8H. Engineered and manufactured in Great Britain the MFHLP30996

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 11/16"
Length 8 3/8"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC9650FKS8H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.7 in
Length 8.39 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
