MicroFit MFHLP31007 Replaces the Pall HC9650FKT16Z

MICROFIT MFHLP31007
MICROFIT MFHLP31007
Representative product image Product image feedback

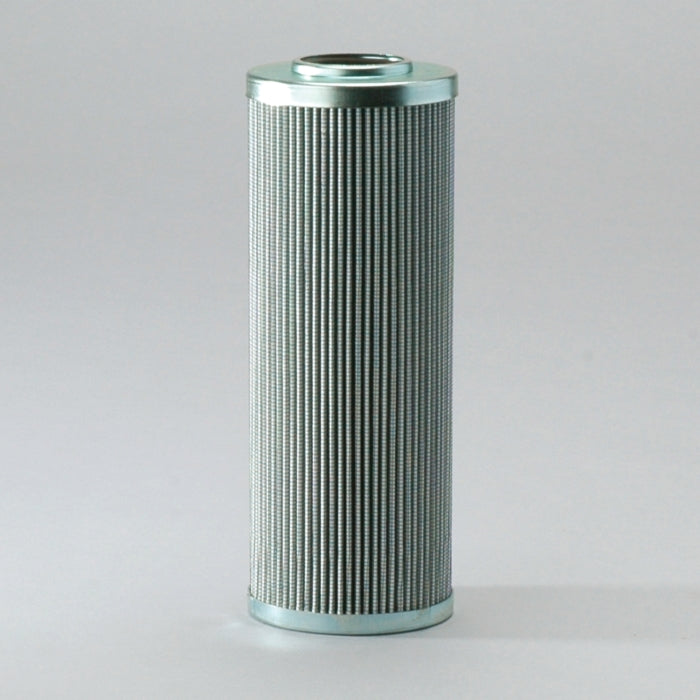

MicroFit® UltraGen III MFHLP31007 Pressure Filter | Replaces the Pall HC9650FKT16Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31007 is the MICROFIT® approved replacement to the Pall HC9650FKT16Z. Engineered and manufactured in Great Britain the MFHLP31007

Price Match
$178.00
8.77 lbs
0.093 ft³
United Kingdom
8421.99.90
1.98 lbs
0.142 ft³
United States
8421.29.80.90
3.99 lbs
0.093 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31007 is the MICROFIT® approved replacement to the Pall HC9650FKT16Z. Engineered and manufactured in Great Britain the MFHLP31007

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 11/16"
Length 17 1/16"
Δ Collapse Pressure 304.6 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC9650FKT16Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.7 in
Length 17.05 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Viton
Temperature Range -10 - +250°F
