MicroFit MFHLP31017 Replaces the Pall HC9650FRP26Z

HC9650FRP26Z
HC9650FRP26Z
Representative product image Product image feedback

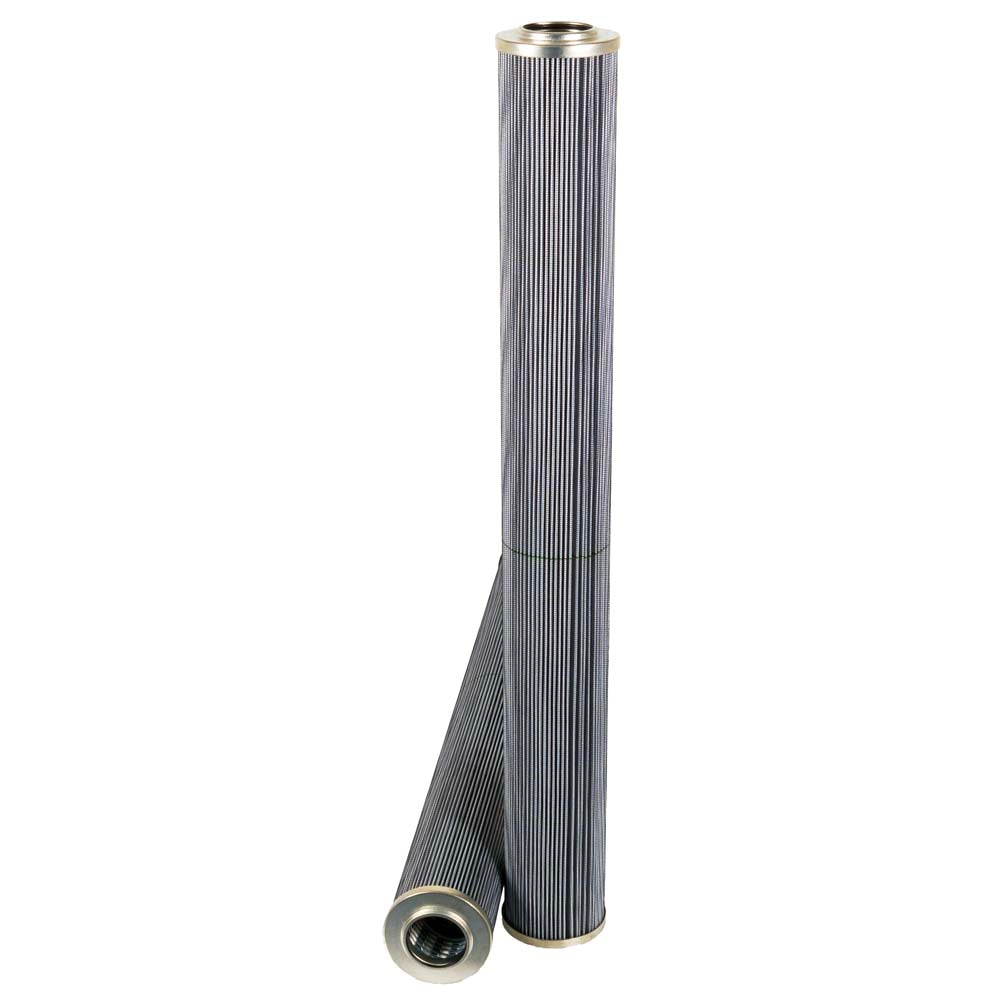

MicroFit® UltraGen III MFHLP31017 Pressure Filter | Replaces the Pall HC9650FRP26Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31017 is the MICROFIT® approved replacement to the Pall HC9650FRP26Z. Engineered and manufactured in Great Britain the MFHLP31017

Price Match
$220.00
13.27 lbs
0.141 ft³
United Kingdom
8421.99.90
6.02 lbs
0.141 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31017 is the MICROFIT® approved replacement to the Pall HC9650FRP26Z. Engineered and manufactured in Great Britain the MFHLP31017

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 11/16"
Length 25 13/16"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC9650FRP26Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.7 in
Length 25.79 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
