Default Title FF300328C Replaces the Hi-Line HE120-STE

Hi-Line HE120-STE

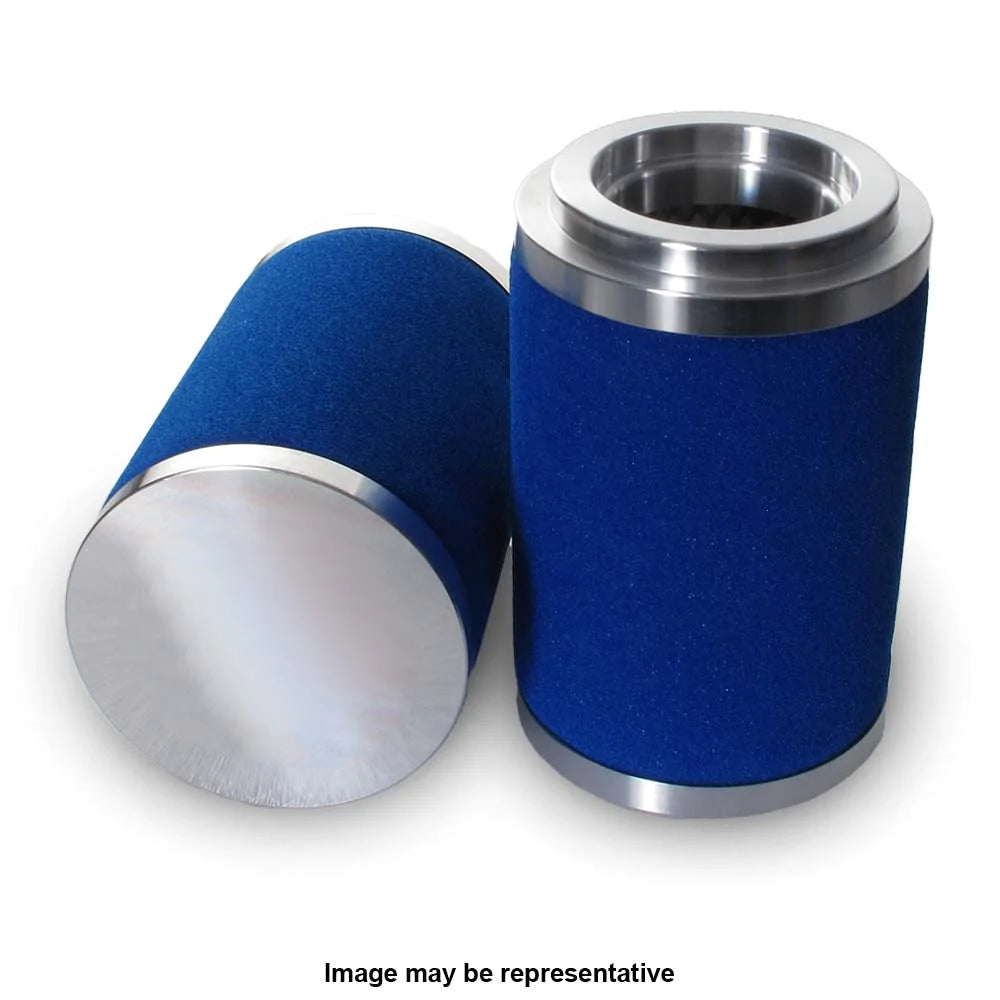

Representative product image Product image feedback

FilterFinder FF300328C Compressed Air Filter Replacement to the Hi-Line HE120-STE

Description

The FilterFinder FF300328C compressed air filter is engineered to ensure your system operates smoothly, offering a versatile solution for various applications.

This element has been fully inspected and is FilterFinder Approved meaning it will meet or surpass the quality and performance standards set by equipment OEMs providing superior performance and an unbeatable total cost of ownership for your operation.

Price Matched
$262.00
Shipping Terms

Description

Specification

StyleCompressed Air Filter
Efficiency 11µ
Outer Diameter 2.99 in
Inner Diameter 1.61 in
Length 4.65 in
MediaPolyester Needle Felt
Flow DirectionIN-OUT
Seal MaterialNitrile
Temperature Range +30 - +180°F

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hi-Line HE120-STE

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
1µ
Efficiency 2
Style Compressed Air Filter
Outer Diameter 2.99 in
Inner Diameter 1.61 in
Length 4.65 in
Media Type Polyester Needle Felt
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range +1 - +80°C
