MicroFit MFHR50049 Replaces the Ikron HEK0530239ASFG025VMB17B

MICROFIT MFHR50049
MICROFIT MFHR50049
Representative product image Product image feedback

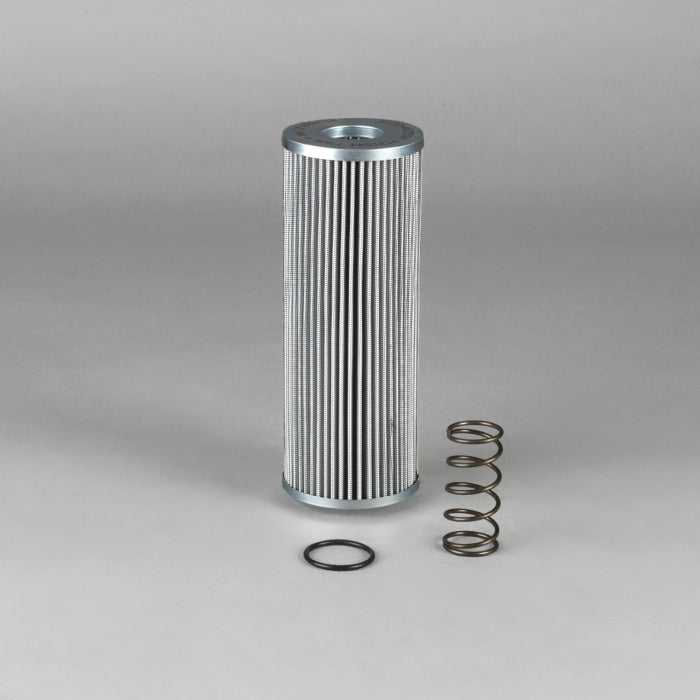

MicroFit® UltraGen III MFHR50049 Return Filter | Replaces the Ikron HEK0530239ASFG025VMB17B

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR50049 is the MICROFIT® approved replacement to the Ikron HEK0530239ASFG025VMB17B. Engineered and manufactured in Great Britain the MFHR50049

Price Match
$52.00
3.5 lbs
0.09 ft³
231 pcs
United Kingdom
8421.99.90
2.09 lbs
0.12 ft³
231 pcs
Italy
8421.29.80.90
1.59 lbs
0.09 ft³
231 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50049 is the MICROFIT® approved replacement to the Ikron HEK0530239ASFG025VMB17B. Engineered and manufactured in Great Britain the MFHR50049

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 7/8"
Inner Diameter 1 5/8"
Length 10 1/16"
Bypass Pressure 15 psi
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HEK0530239ASFG025VMB17B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 3.9 in
Inner Diameter 1.59 in
Length 10.08 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
