Fleetguard HF6553 Replacement Spin-On Filter

Fleetguard HF6553
Fleetguard HF6553
Representative product image Product image feedback

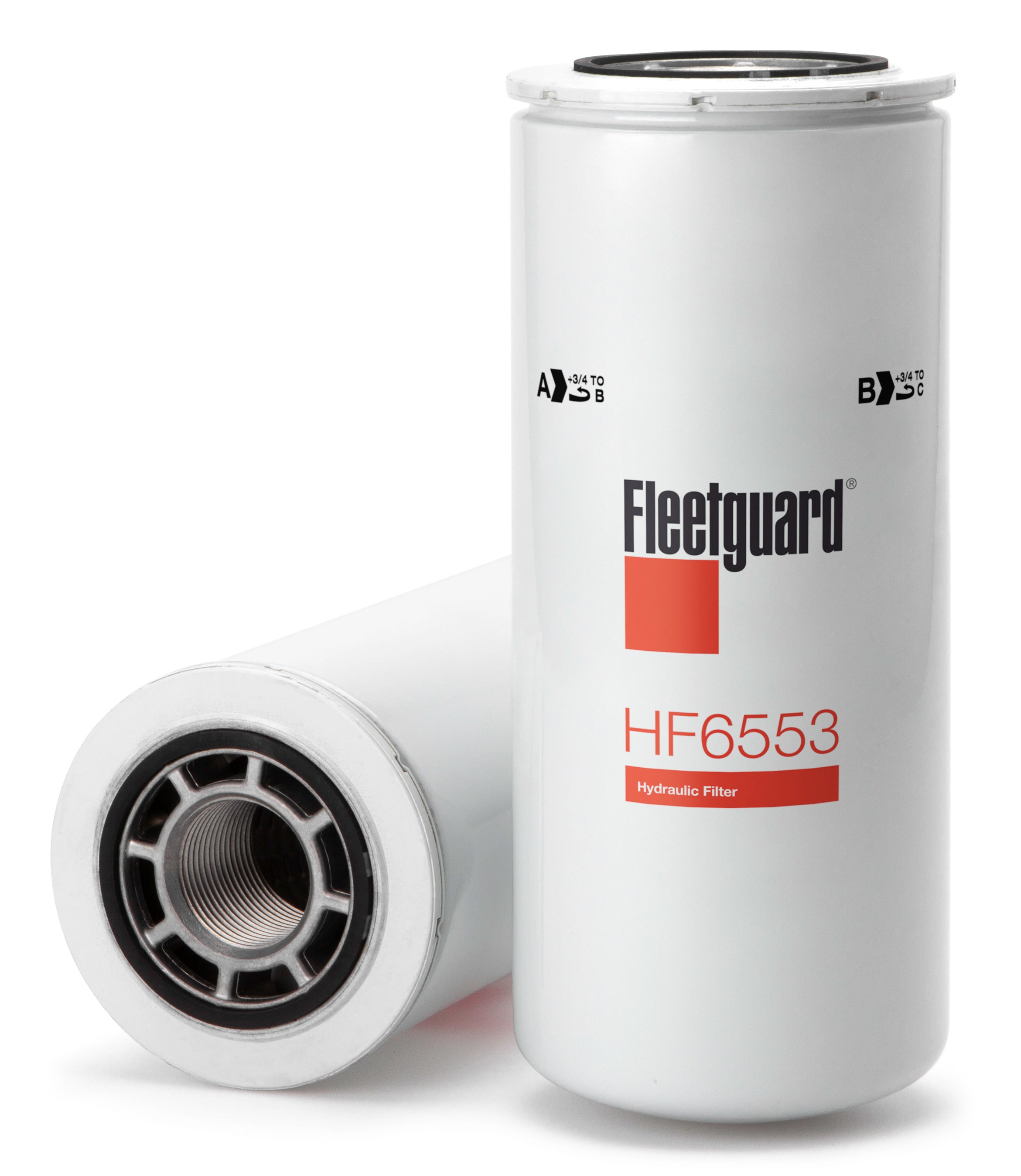

Fleetguard HF6553 Spin-On Filter

Brand: Fleetguard
Description

Fleetguard® HF6553 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$48.00
3.12 lbs
0.111 ft³
275 pcs
United States
8421.99.90
2.8 lbs
0.095 ft³
275 pcs
Italy
8421.29.80.90
275 pcs
Germany
8421.29.80
3.17 lbs
0.109 ft³
275 pcs
France
8421.99.90
2.98 lbs
0.077 ft³
275 pcs
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® HF6553 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 115µ @ β200
Efficiency 217µ @ β1000
Outer Diameter 3 3/4"
Length 9 1/2"
Thread1 3/8"-12 UNF 2B
Δ Collapse Pressure 493.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF6553

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
15µ @ β200
Efficiency 2 17µ @ β1000
Style Spin-On Filter
Outer Diameter 3.74 in
Inner Diameter
Length 9.51 in
Media Type Glass Fiber
Flow Direction
Thread 1 3/8"-12 UNF 2B
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 493 PSI
Seal Nitrile
Temperature Range -20 - +210°F
