MicroFit MFHLP31281 Replaces the Hy-Pro HP16DNL143MV

HP16DNL143MV
HP16DNL143MV

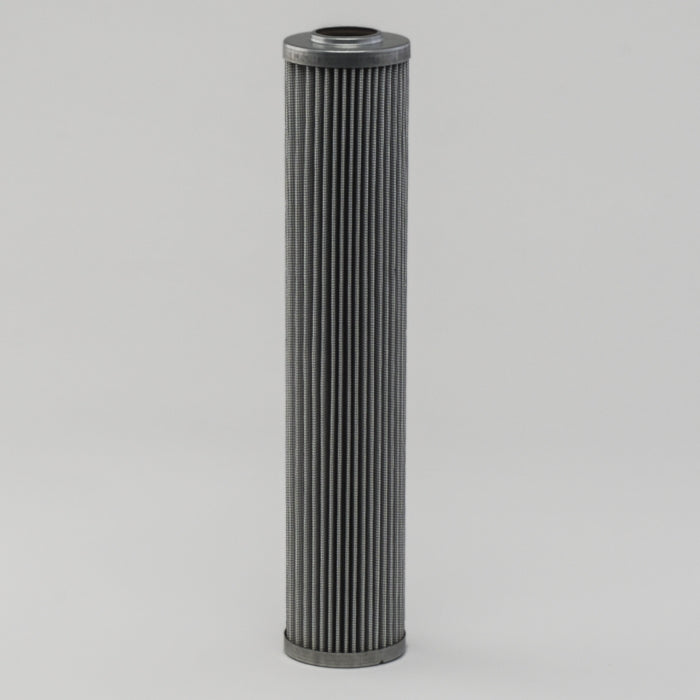

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31281 Pressure Filter | Replaces the Hy-Pro HP16DNL143MV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31281 is the MICROFIT® approved replacement to the Hy-Pro HP16DNL143MV. Engineered and manufactured in Great Britain the MFHLP31281

Price Match
$114.00
4.25 lbs
0.045 ft³
468 pcs
United Kingdom
8421.99.90
1.39 lbs
0.155 ft³
468 pcs
United States
8421.29.80.90
0.88 lbs
0.045 ft³
468 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31281 is the MICROFIT® approved replacement to the Hy-Pro HP16DNL143MV. Engineered and manufactured in Great Britain the MFHLP31281

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 14"
Δ Collapse Pressure 290.1 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP16DNL143MV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 13.98 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +250°F
