MicroFit MFHLP32349 Replaces the Hy-Pro HP32NL650WB

MICROFIT MFHLP32349
MICROFIT MFHLP32349

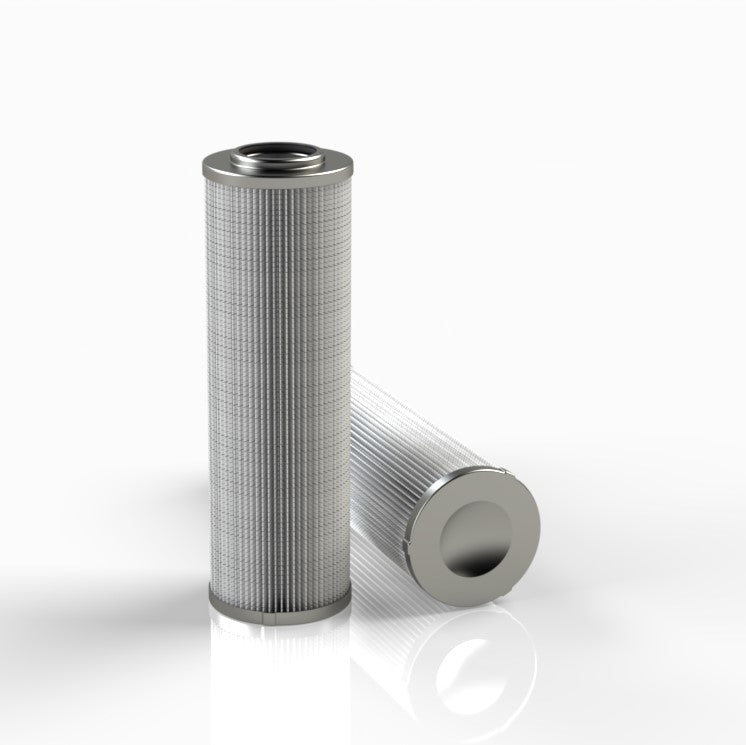

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32349 DIN Pressure Filter | Replaces the Hy-Pro HP32NL650WB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32349 is the MICROFIT® approved replacement to the Hy-Pro HP32NL650WB. Engineered and manufactured in Great Britain the MFHLP32349

Price Match
$172.00
2.33 lbs
0.034 ft³
United Kingdom
8421.99.90
1.06 lbs
0.034 ft³
Italy
8421.99.90
1.15 lbs
0.044 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32349 is the MICROFIT® approved replacement to the Hy-Pro HP32NL650WB. Engineered and manufactured in Great Britain the MFHLP32349

Specification

StyleDIN Pressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 3 1/16"
Inner Diameter 1 5/8"
Length 6 3/16"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP32NL650WB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style DIN Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.59 in
Length 6.18 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
