MicroFit MFHLP30758 Replaces the Hy-Pro HP66L812MV

HP66L812MV
HP66L812MV
Representative product image Product image feedback

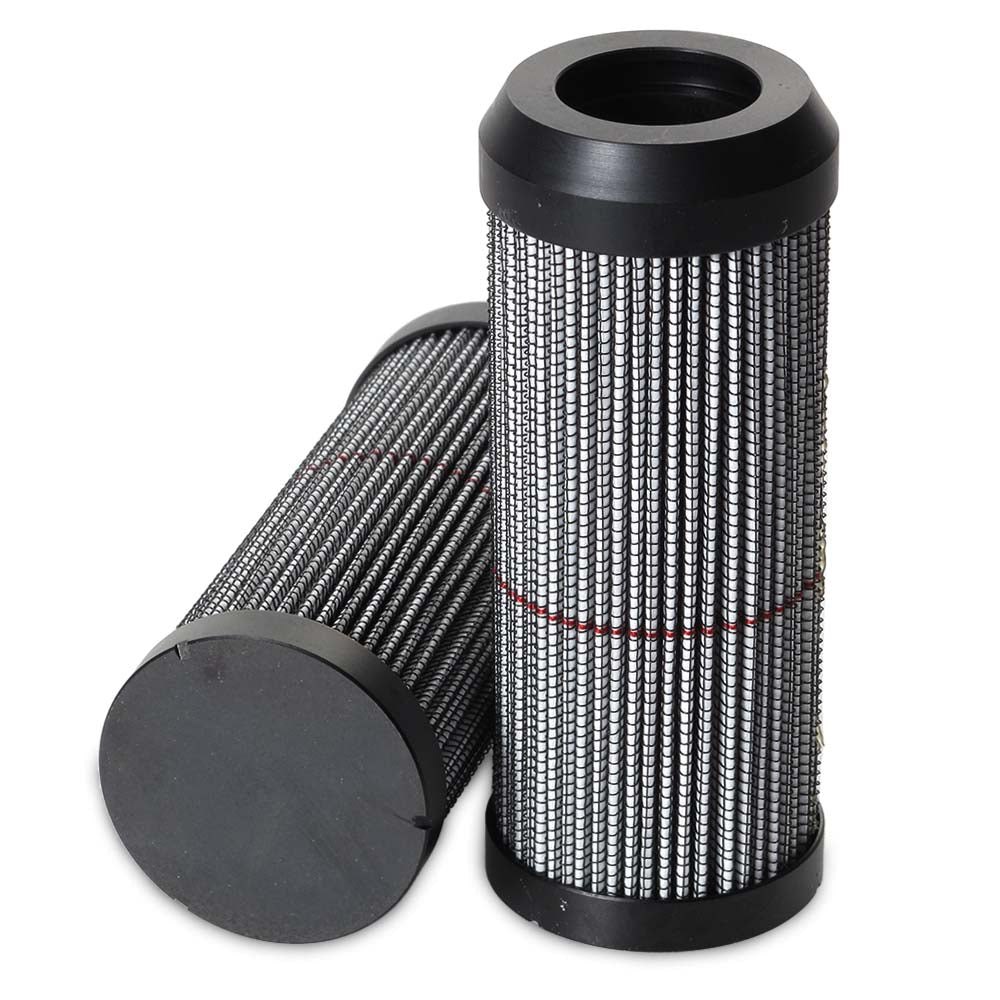

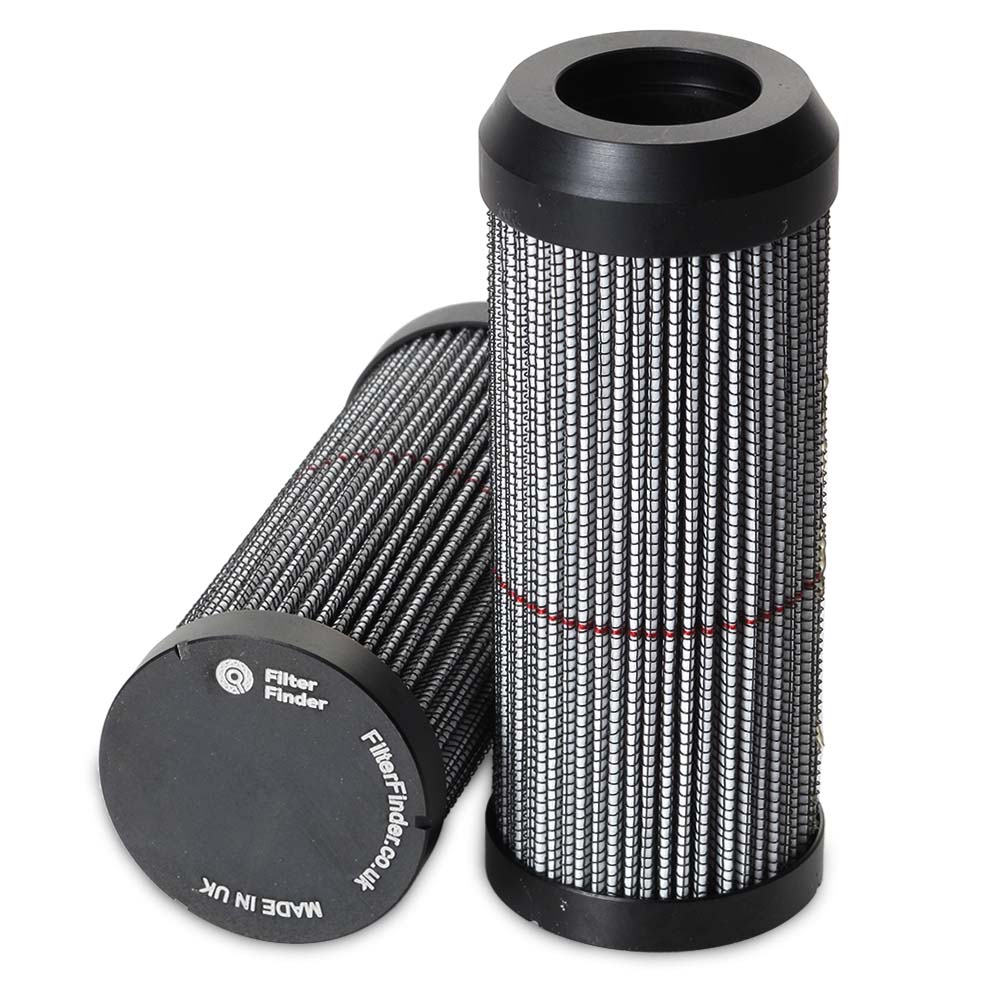

MicroFit® UltraGen III MFHLP30758 Pressure Filter | Replaces the Hy-Pro HP66L812MV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30758 is the MICROFIT® approved replacement to the Hy-Pro HP66L812MV. Engineered and manufactured in Great Britain the MFHLP30758

Price Match
$100.00
4.3 lbs
0.045 ft³
United Kingdom
8421.99.90
1.96 lbs
0.045 ft³
Italy
8421.99.90
1.41 lbs
0.059 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30758 is the MICROFIT® approved replacement to the Hy-Pro HP66L812MV. Engineered and manufactured in Great Britain the MFHLP30758

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 11/16"
Length 8 1/4"
Δ Collapse Pressure 580.2 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP66L812MV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.7 in
Length 8.23 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 580 PSI
Seal Viton
Temperature Range -10 - +250°F
