MicroFit MFHR51505 Replaces the Hy-Pro HP84L393MV

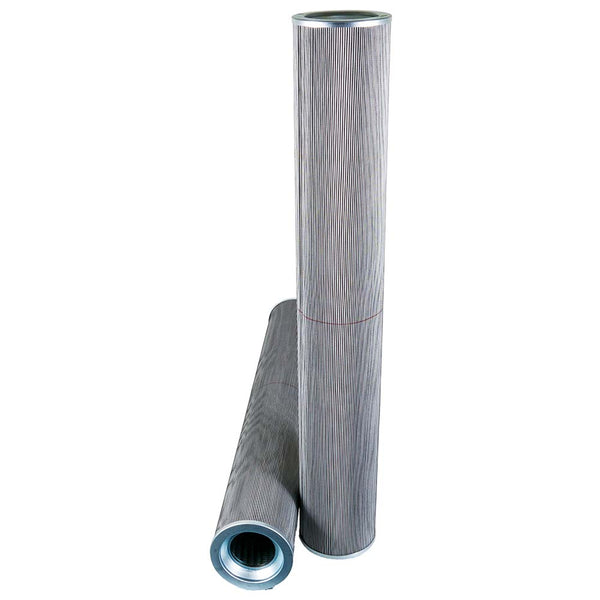

MICROFIT MFHR51505
MICROFIT MFHR51505
Representative product image Product image feedback

MicroFit® UltraGen III MFHR51505 Return Filter | Replaces the Hy-Pro HP84L393MV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR51505 is the MICROFIT® approved replacement to the Hy-Pro HP84L393MV. Engineered and manufactured in Great Britain the MFHR51505

Price Match
$382.00
42.55 lbs
0.8 ft³
United Kingdom
8421.99.90
19.31 lbs
0.8 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR51505 is the MICROFIT® approved replacement to the Hy-Pro HP84L393MV. Engineered and manufactured in Great Britain the MFHR51505

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 6"
Inner Diameter 3 5/16"
Length 38 9/16"
Δ Collapse Pressure 145.0 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP84L393MV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 5.98 in
Inner Diameter 3.28 in
Length 38.58 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Viton
Temperature Range -10 - +250°F
