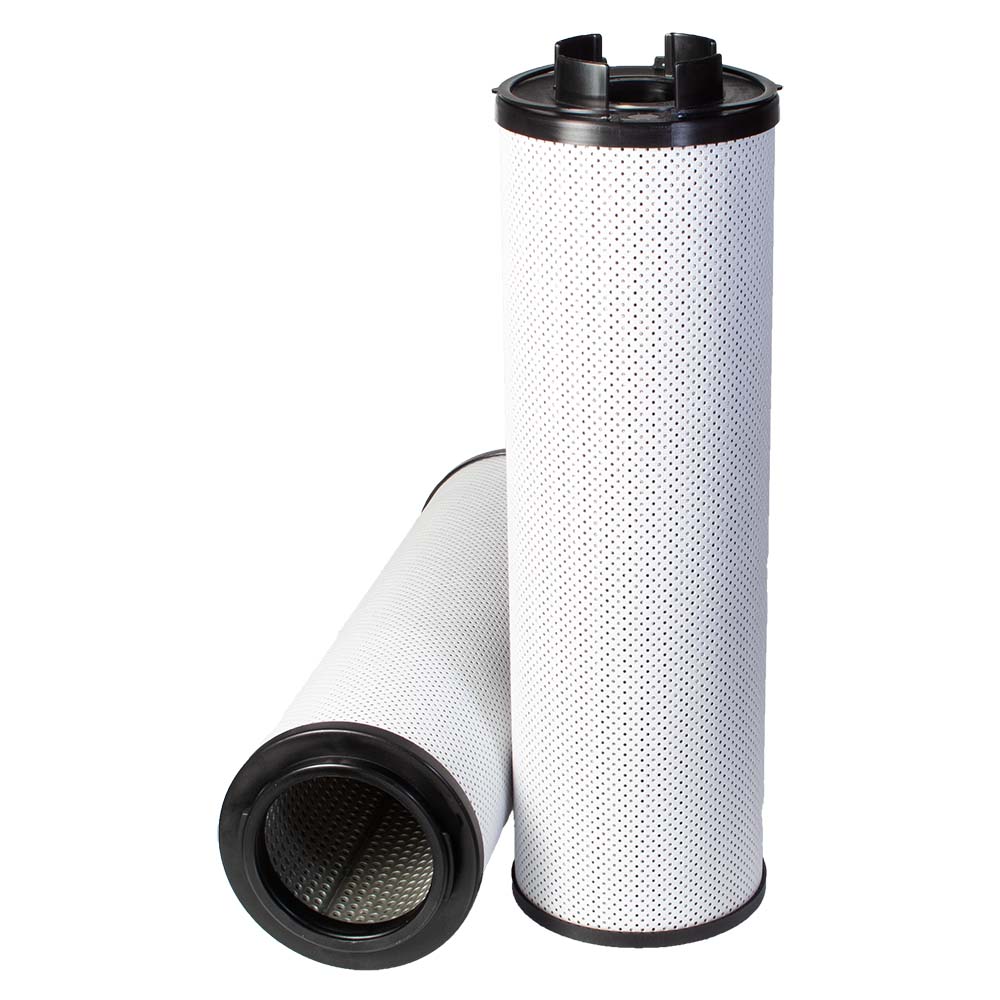

Donaldson P567000 Hydraulic Filter, Cartridge Dt | Alternative to the SF Filter HY13262

Brand: Donaldson
Price Match
$412.00
5.2 lbs
0.499 ft³
8421.29.80.90
8.42 lbs
0.407 ft³
France
8421.99.90
10.63 lbs
0.407 ft³
Italy
8421.99.90
7.18 lbs
0.452 ft³
8421.23.00
0.407 ft³
8421.23.00
0.407 ft³
8421.99.90
0.407 ft³
8421.99.90
10.63 lbs
0.407 ft³
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P567000 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Specification

StyleReturn Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 5 5/8"
Inner Diameter 3 13/16"
Length 19"
Bypass Pressure 44 psi
Δ Collapse Pressure 290.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F

Description

Genuine Donaldson P567000 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Cross References

To the genuine SF Filter HY13262

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 5.65 in
Inner Diameter 3.8 in
Length 19.02 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

44 PSI
Collapse Pressure 290 PSI
Seal Nitrile
Temperature Range -20 - +210°F
