Specification

StyleProcess Filter
Efficiency 190µ
Outer Diameter 2.52 in
Inner Diameter 1.06 in
Length 40.0 in
Bypass Pressure 29 PSI
MediaNylon
Flow DirectionOUT-IN
Δ Collapse Pressure 58 PSI
Temperature Range +1 - +150°C

Approved Product

Find out more
Pall Brand Logo

Same Fit-Form & Function

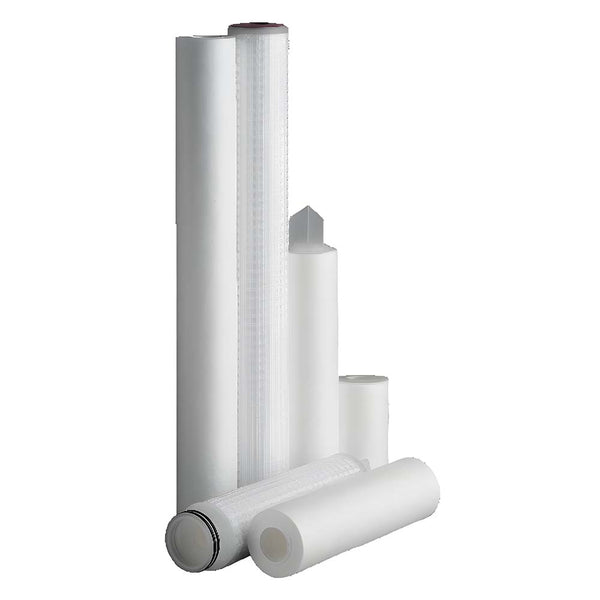

As the Genuine Pall ME3310FGG40Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
90µ
Efficiency 2
Style Process Filter
Outer Diameter 2.52 in
Inner Diameter 1.06 in
Length 40.0 in
Media Type Nylon
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

29 PSI
Collapse Pressure 58 PSI
Seal
Temperature Range +1 - +150°C
