Summary

MicroFit MFHC60146 Replaces the MP Filtri MP3312

MICROFIT MFHC60146
MICROFIT MFHC60146
Representative product image Product image feedback

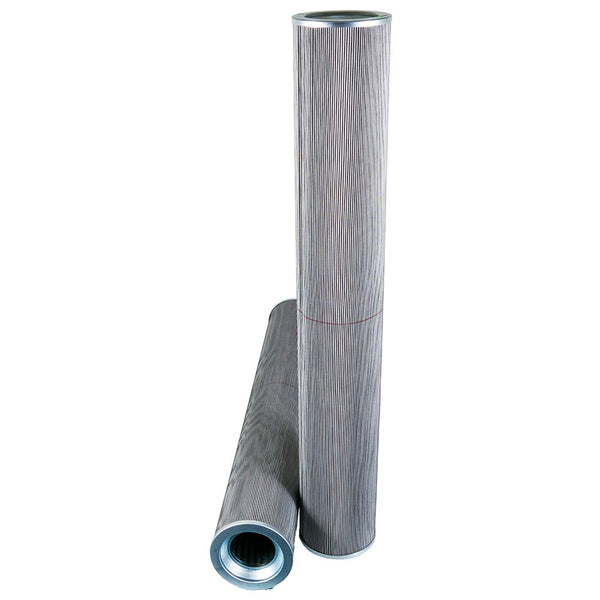

MicroFit® UltraGen III MFHC60146 Coreless Filter | Replaces the MP Filtri MP3312

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60146 is the MICROFIT® approved replacement to the MP Filtri MP3312. Engineered and manufactured in Great Britain the MFHC60146

Price Match
$266.00
13.0 lbs
0.53 ft³
36 pcs
United Kingdom
8421.99.90
5.91 lbs
0.529 ft³
36 pcs
Italy
8421.99.90
9.19 lbs
0.739 ft³
36 pcs
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60146 is the MICROFIT® approved replacement to the MP Filtri MP3312. Engineered and manufactured in Great Britain the MFHC60146

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 6"
Inner Diameter 3 5/16"
Length 25 9/16"
Δ Collapse Pressure 145.0 psi
Seal MaterialViton
Temperature Range -10 - +250°F
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri MP3312

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Coreless Filter
Outer Diameter 5.98 in
Inner Diameter 3.28 in
Length 25.55 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Viton
Temperature Range -10 - +250°F
