Summary

Stauff NR-1000-E-06-B/4 Replaces the Stauff NR1000E06B

Stauff NR1000E06B
Stauff NR1000E06B

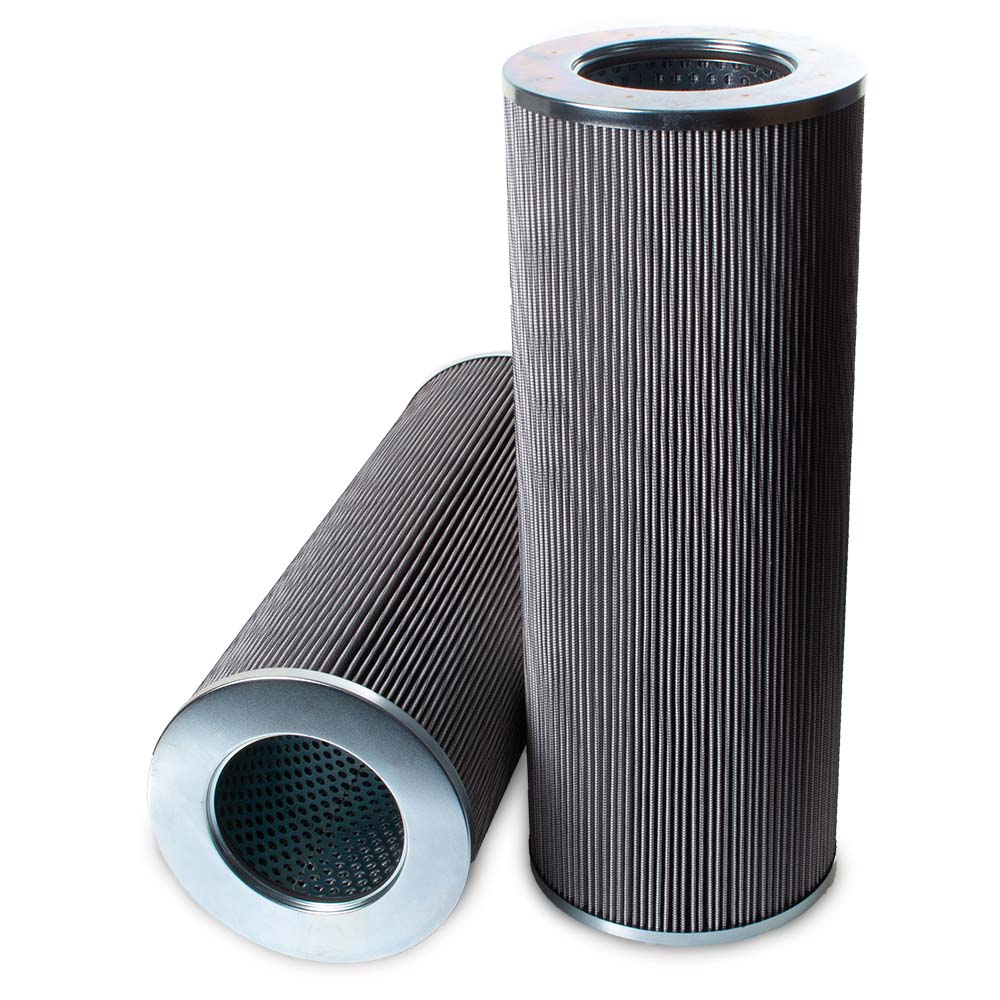

Representative product image Product image feedback

Stauff NR-1000-E-06-B/4 DIN Return Filter | Replaces the Stauff NR1000E06B

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 159,5 Inner Diameter (mm): 90,3 Length (mm): 399 Sealing: NBR, β ratio >200

Price Match
$667.00
50 pcs
Germany
8421.99.90
5.69 lbs
0.499 ft³
50 pcs
United States
8421.29.80.90
6.53 lbs
0.417 ft³
50 pcs
France
8421.99.90
6.17 lbs
0.334 ft³
50 pcs
Italy
8421.99.90
7.97 lbs
0.684 ft³
50 pcs
Germany
8421.23.00
6.17 lbs
50 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 159,5 Inner Diameter (mm): 90,3 Length (mm): 399 Sealing: NBR, β ratio >200

Specification

StyleDIN Return Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 6 5/16"
Inner Diameter 3 9/16"
Length 15 11/16"
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff NR-1000-E-06-B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style DIN Return Filter
Outer Diameter 6.3 in
Inner Diameter 3.55 in
Length 15.71 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
