MicroFit MFHLP32776 Replaces the Parker P9650D13N2025FKM

MICROFIT MFHLP32776
MICROFIT MFHLP32776

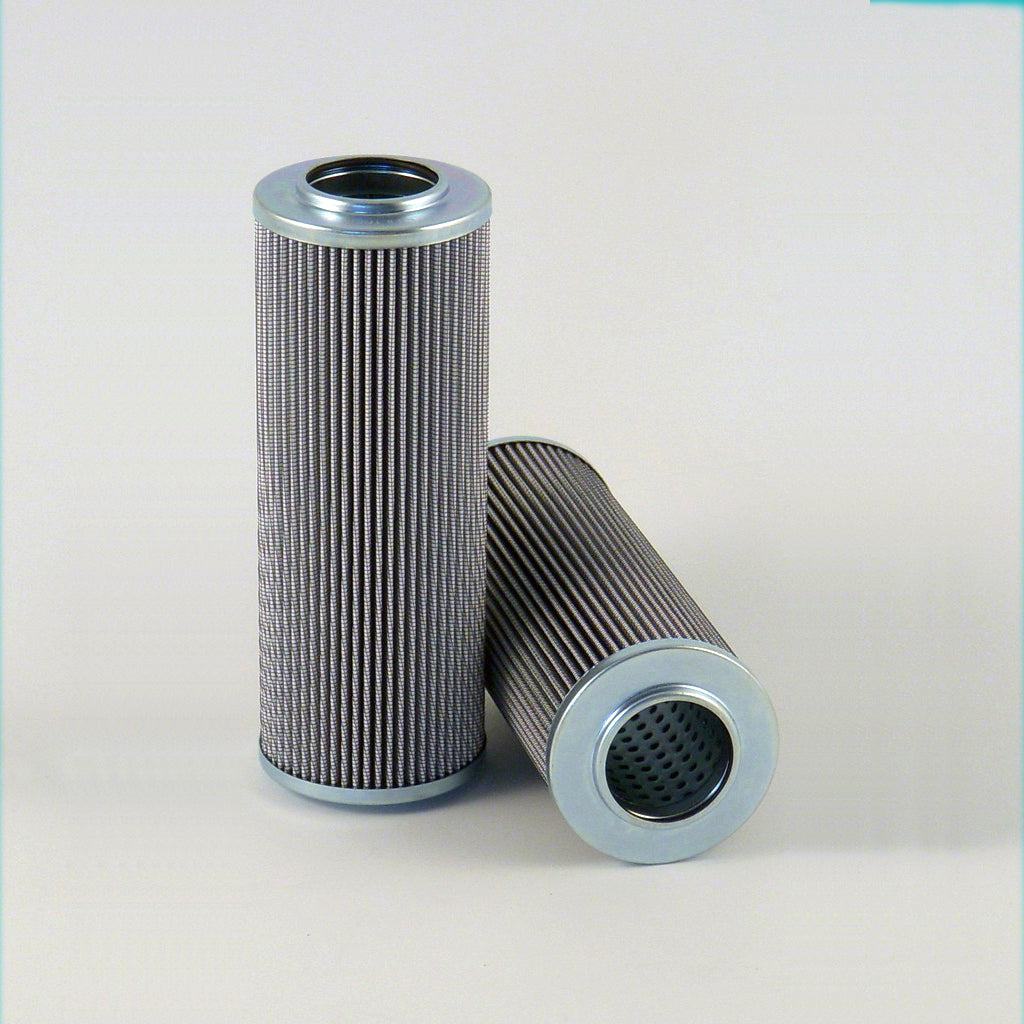

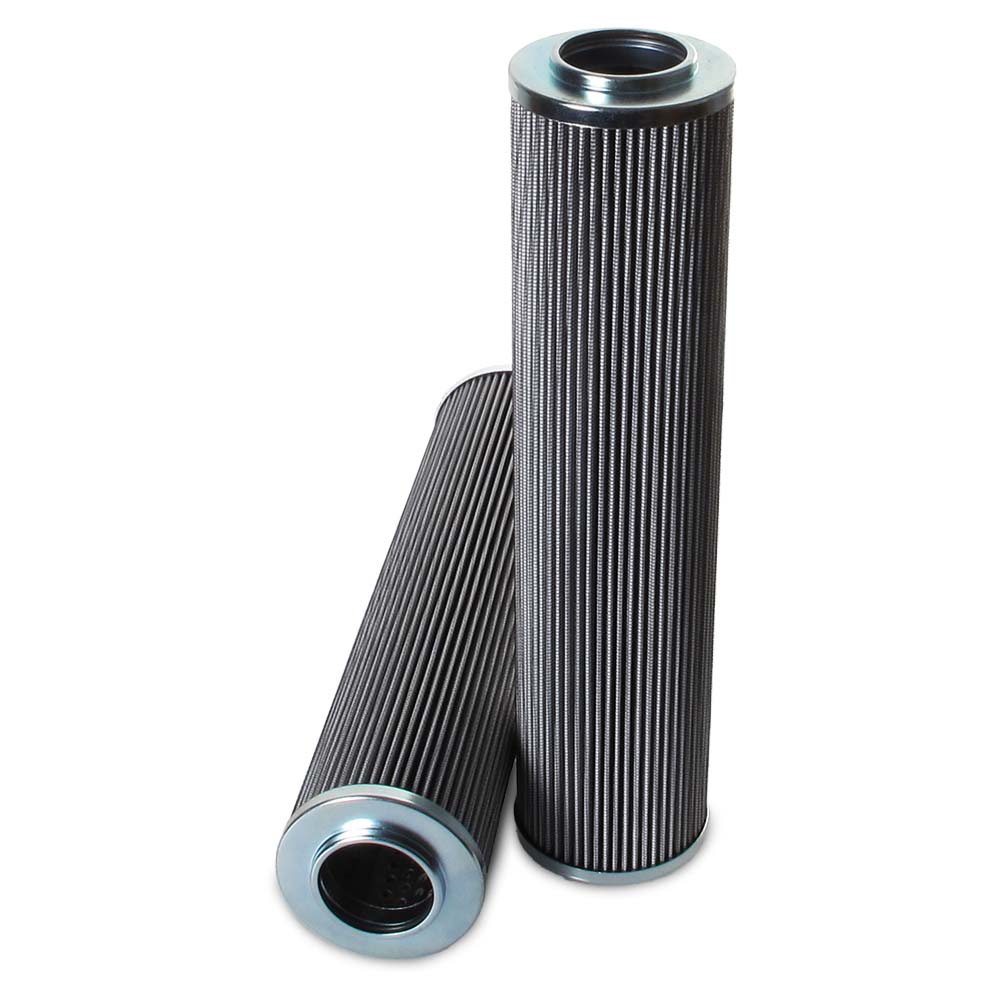

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32776 Pressure Filter | Replaces the Parker P9650D13N2025FKM

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32776 is the MICROFIT® approved replacement to the Parker P9650D13N2025FKM. Engineered and manufactured in Great Britain the MFHLP32776

Price Match
$148.00
6.77 lbs
0.072 ft³
United Kingdom
8421.99.90
3.09 lbs
0.072 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32776 is the MICROFIT® approved replacement to the Parker P9650D13N2025FKM. Engineered and manufactured in Great Britain the MFHLP32776

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 11/16"
Length 13 1/8"
Δ Collapse Pressure 304.6 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker P9650D13N2025FKM

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.7 in
Length 13.15 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Viton
Temperature Range -10 - +250°F
