MicroFit MFHC60186 Replaces the PTI Technologies PC83150JFB

MICROFIT MFHC60186
MICROFIT MFHC60186

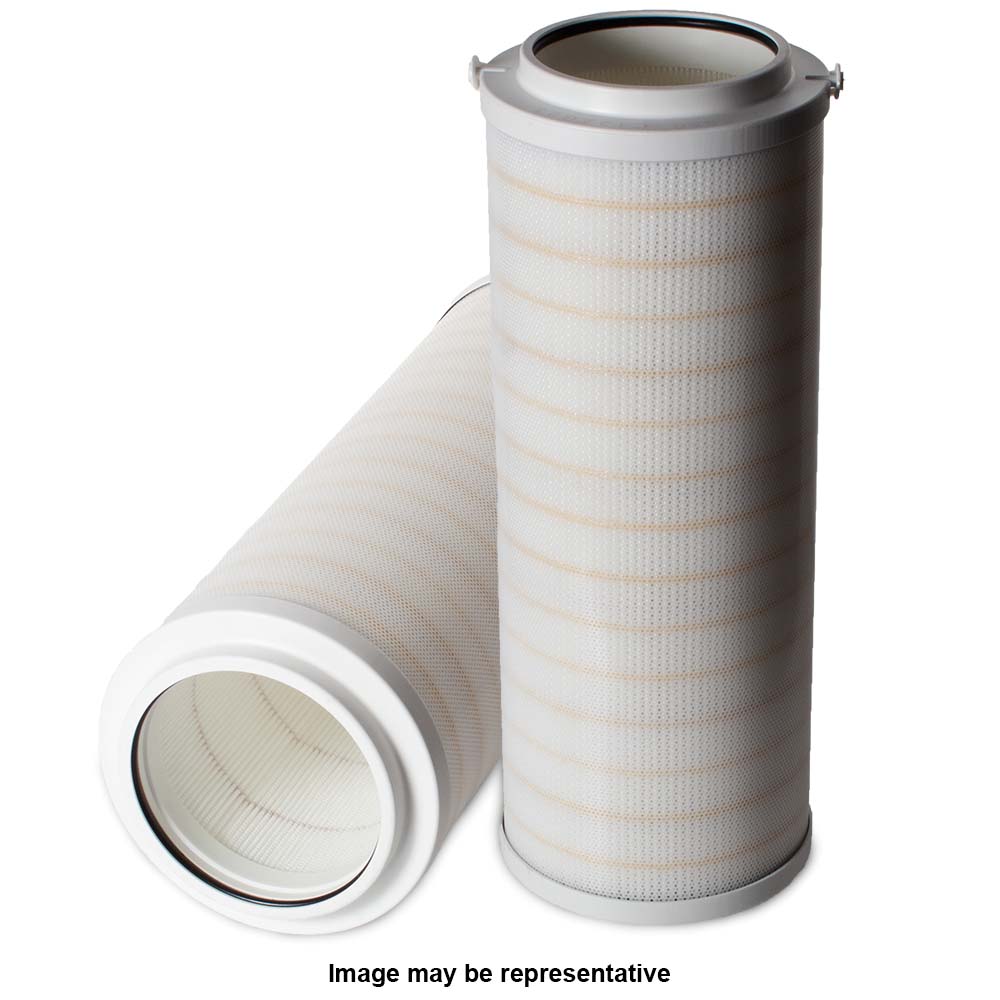

Representative product image Product image feedback

MicroFit® UltraGen III MFHC60186 Coreless Filter | Replaces the PTI Technologies PC83150JFB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60186 is the MICROFIT® approved replacement to the PTI PC83150JFB. Engineered and manufactured in Great Britain the MFHC60186

Price Match
$254.00
3.45 lbs
0.247 ft³
United Kingdom
8421.99.90
2.91 lbs
0.432 ft³
France
8421.99.90
1.59 lbs
0.246 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60186 is the MICROFIT® approved replacement to the PTI PC83150JFB. Engineered and manufactured in Great Britain the MFHC60186

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 5 3/8"
Inner Diameter 3 15/16"
Length 14 5/8"
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine PTI Technologies PC83150JFB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Coreless Filter
Outer Diameter 5.39 in
Inner Diameter 3.92 in
Length 14.65 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
