Specification

StyleReturn Filter
Efficiency 125µ @ β2
Outer Diameter 5.12 in
Inner Diameter 2.03 in
Length 8.03 in
Bypass Pressure 15 PSI
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 145 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

FilterFinder Approved Product

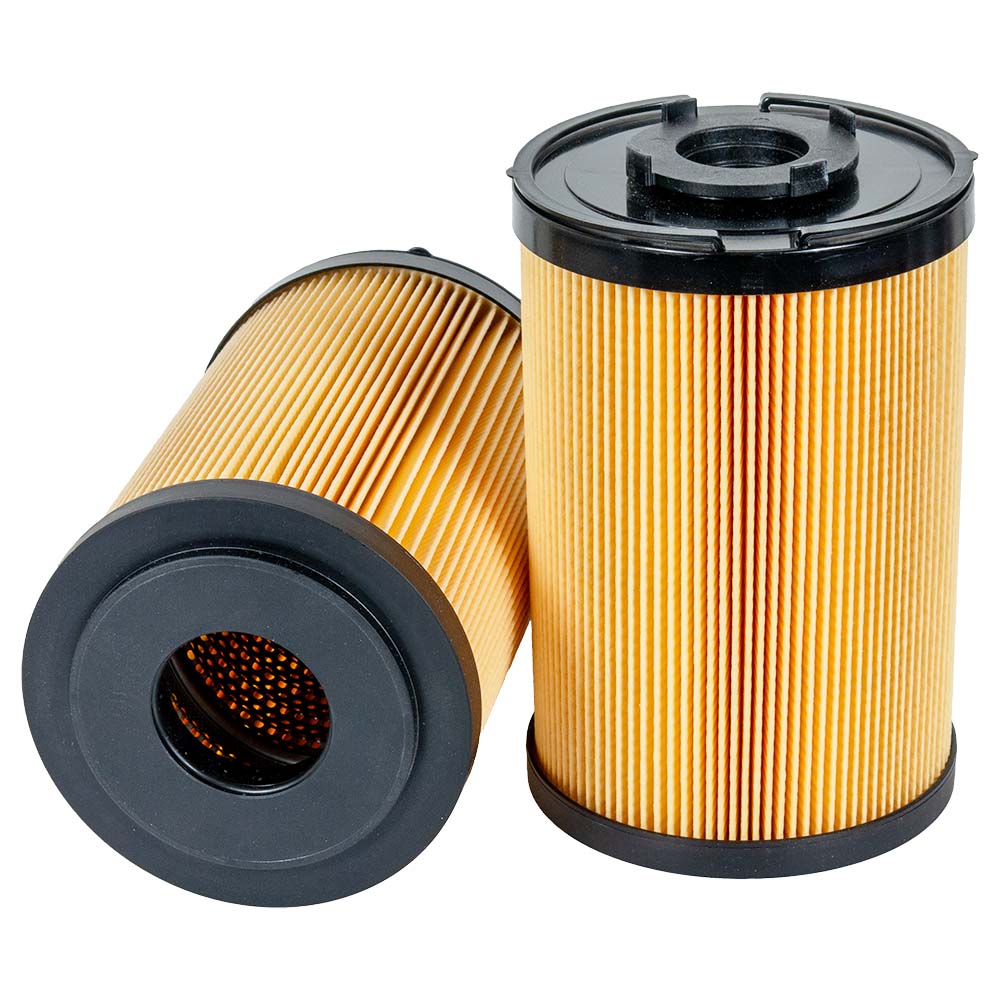

We Guarantee The FilterFinder FF200054B Is

  • The Same Fit, Form & Function as the Original Filtrec R151C25B.
  • Fully Inspected in Accordance with ISO 9001:2015.

What This Means For You

  • Simple No Quibble 45 Day Returns.
  • 1 Year Manufacturer Warranty.
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 5.12 in
Inner Diameter 2.03 in
Length 8.03 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
