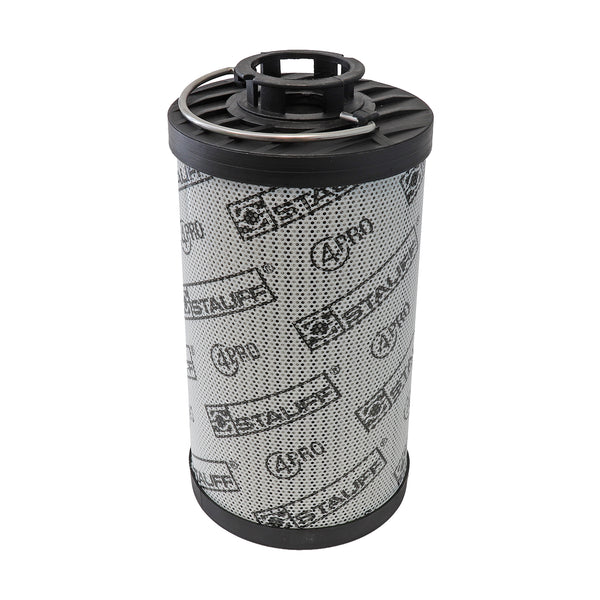

Stauff RE-070-G-05-B/4 Replaces the Stauff R240G05B4
Stauff RE-070-G-05-B/4 Replaces the Stauff R240G05B4
RE-070-G-05-B/4
Stauff
Stauff R240G05B4
Stauff
Stauff R240G05B4
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
Ships in 5 Days
$126.00
Price$126.00/each
Delivered Wednesday, April 2
Order within 17hrs 50mins
Order within 17hrs 50mins
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $123.48 |
| 5 - 9 | $120.96 |
| 10+ | $118.44 |
0.94 lbs
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 2.89 in |
| Inner Diameter | 1.35 in |
| Length | 7.99 in |
| Bypass Pressure | 44 PSI |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 290 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Genuine Product
Find out more
Stauff Product
Genuine Stauff RE-070-G-05-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
