MicroFit MFHLP31006 Alternative to the Fairey Arlon R950H1625A

R950H1625A
R950H1625A
Datasheet preview

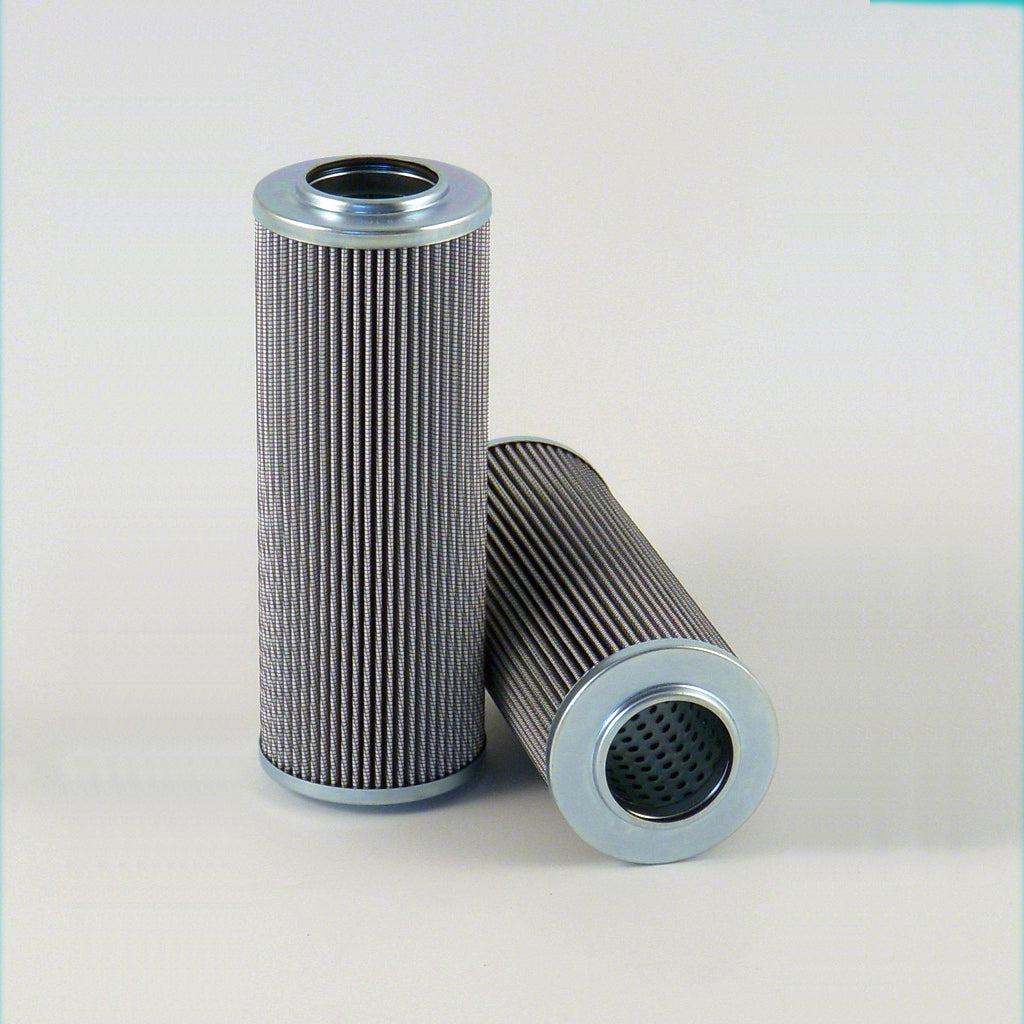

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31006 Pressure Filter | Alternative to the Fairey Arlon R950H1625A

Brand: MicroFit
Price Match
$172.00
8.77 lbs
0.093 ft³
United Kingdom
8421.99.90
2.56 lbs
0.107 ft³
France
8421.99.90
1.98 lbs
0.142 ft³
United States
8421.29.80.90
3.99 lbs
0.107 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31006 is the MICROFIT® approved replacement to the Fairey Arlon R950H1625A. Engineered and manufactured in Great Britain the MFHLP31006

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 1/16"
Inner Diameter 1 11/16"
Length 17 1/16"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F

Description

The MICROFIT® UltraGen III MFHLP31006 is the MICROFIT® approved replacement to the Fairey Arlon R950H1625A. Engineered and manufactured in Great Britain the MFHLP31006

Cross References

To the genuine Fairey Arlon R950H1625A

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.7 in
Length 17.05 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
