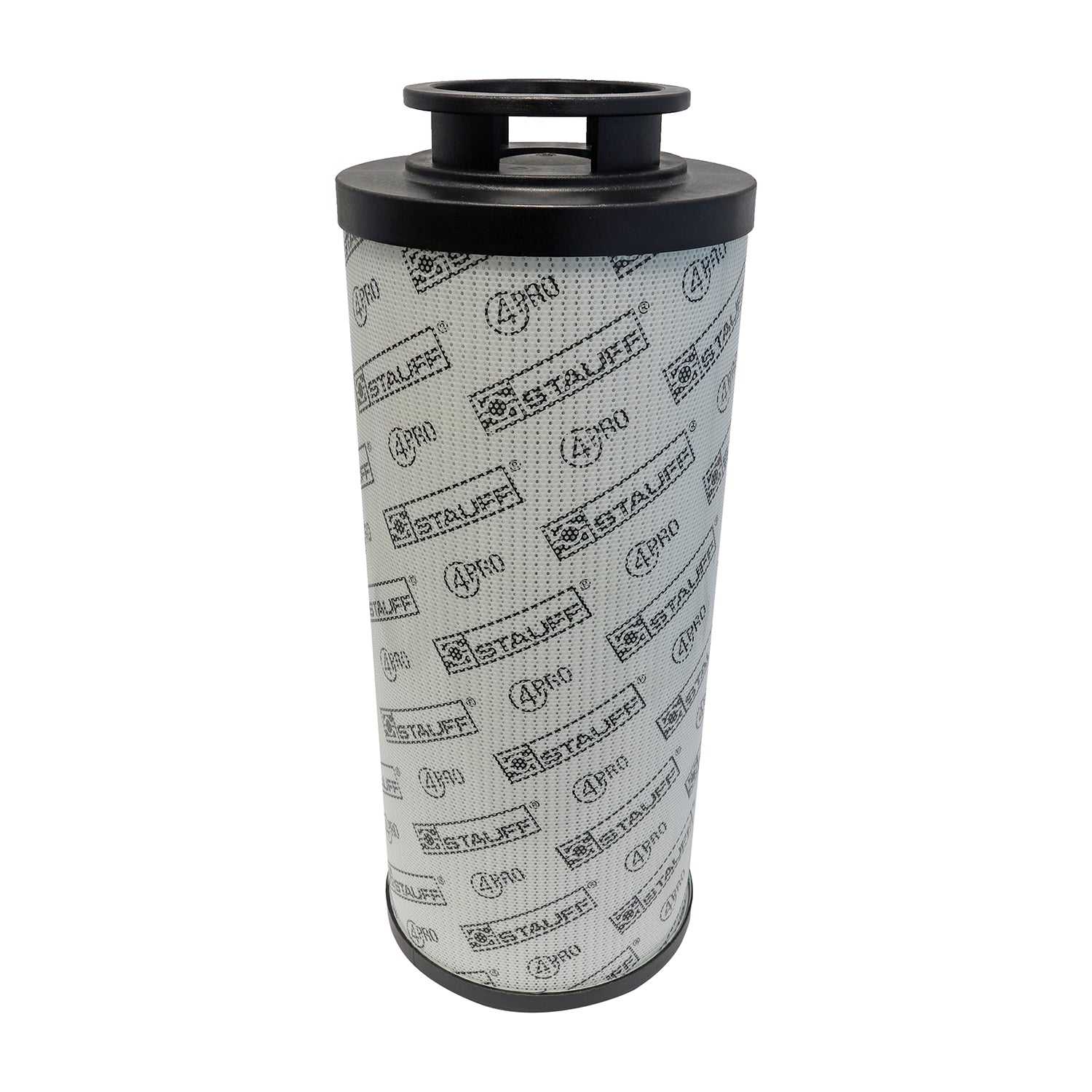

Stauff RE-250-G-10-B/5 Replacement Return Filter
Stauff RE-250-G-10-B/5 Return Filter
RE-250-G-10-B/5
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 364 Sealing: NBR, β ratio >200
Regular price
$340.00
Unit price
per
Germany
8421.99.90
5.51 lbs
0.45 ft³
France
8421.99.90
7.98 lbs
0.266 ft³
Italy
8421.99.90
7.98 lbs
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 364 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 5 5/8" |
| Inner Diameter | 3 13/16" |
| Length | 14 5/16" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff RE-250-G-10-B/5
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
