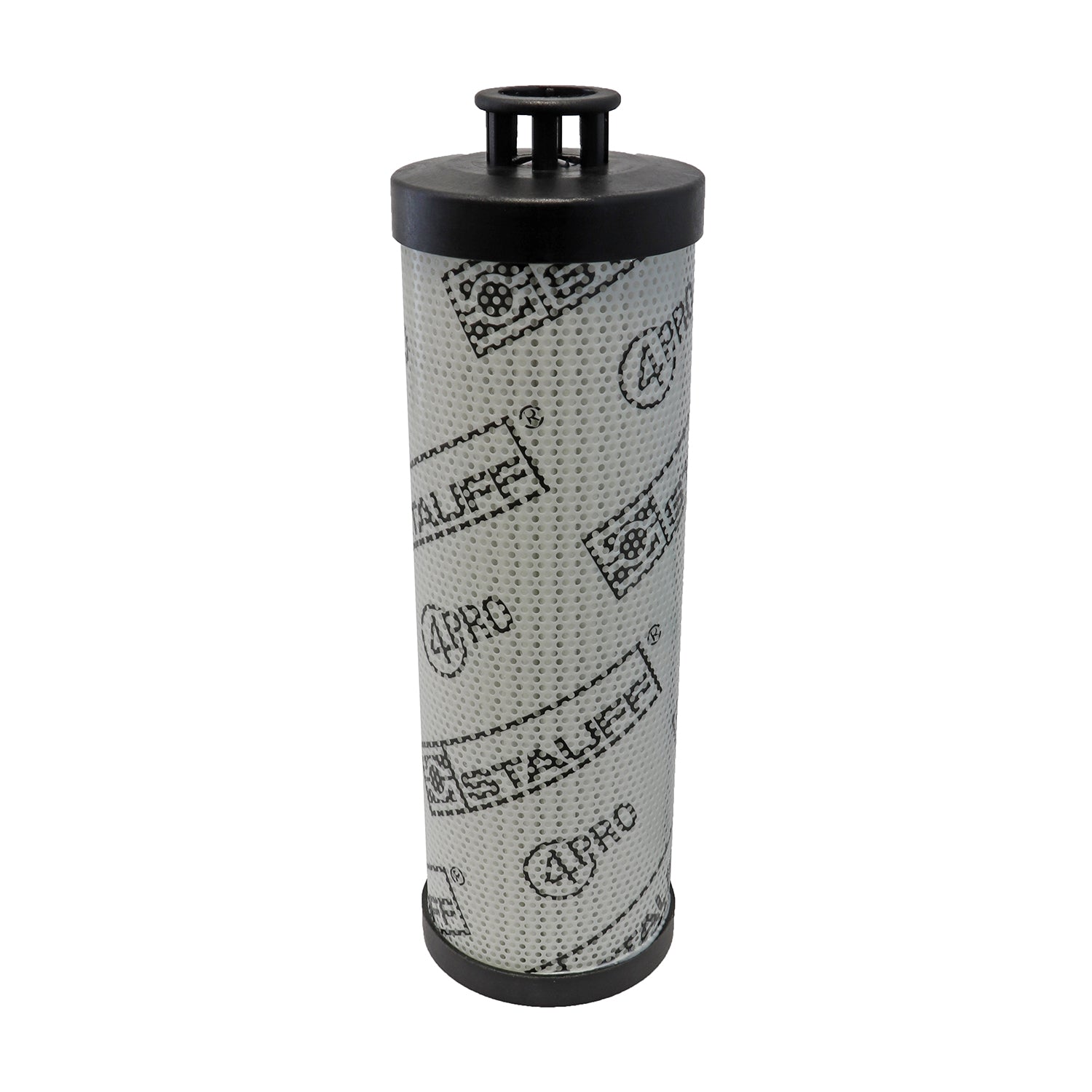

Stauff RE-030-G-05-B/4 Replaces the Stauff RE030E05B
Stauff RE-030-G-05-B/4 Return Filter | Replaces the Stauff RE030E05B
RE-030-G-05-B/4
Stauff
Stauff RE030E05B
Stauff
Stauff RE030E05B
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 51,5 Inner Diameter (mm): 22,3 Length (mm): 170 Sealing: NBR, β ratio >200
Regular price
$88.00
Unit price
per
146 pcs
Germany
8421.99.90
0.49 lbs
0.016 ft³
146 pcs
Italy
8421.99.90
0.49 lbs
0.023 ft³
146 pcs
France
8421.99.90
0.53 lbs
0.029 ft³
146 pcs
Canada
8421.29.80.90
0.49 lbs
146 pcs
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 51,5 Inner Diameter (mm): 22,3 Length (mm): 170 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 2 1/16" |
| Inner Diameter | 7/8" |
| Length | 6 5/8" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff RE-030-G-05-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
