Summary

Stauff RE-070-N-10-B/2 Replaces the Stauff RE070D10B4

Stauff RE070D10B4
Stauff RE070D10B4

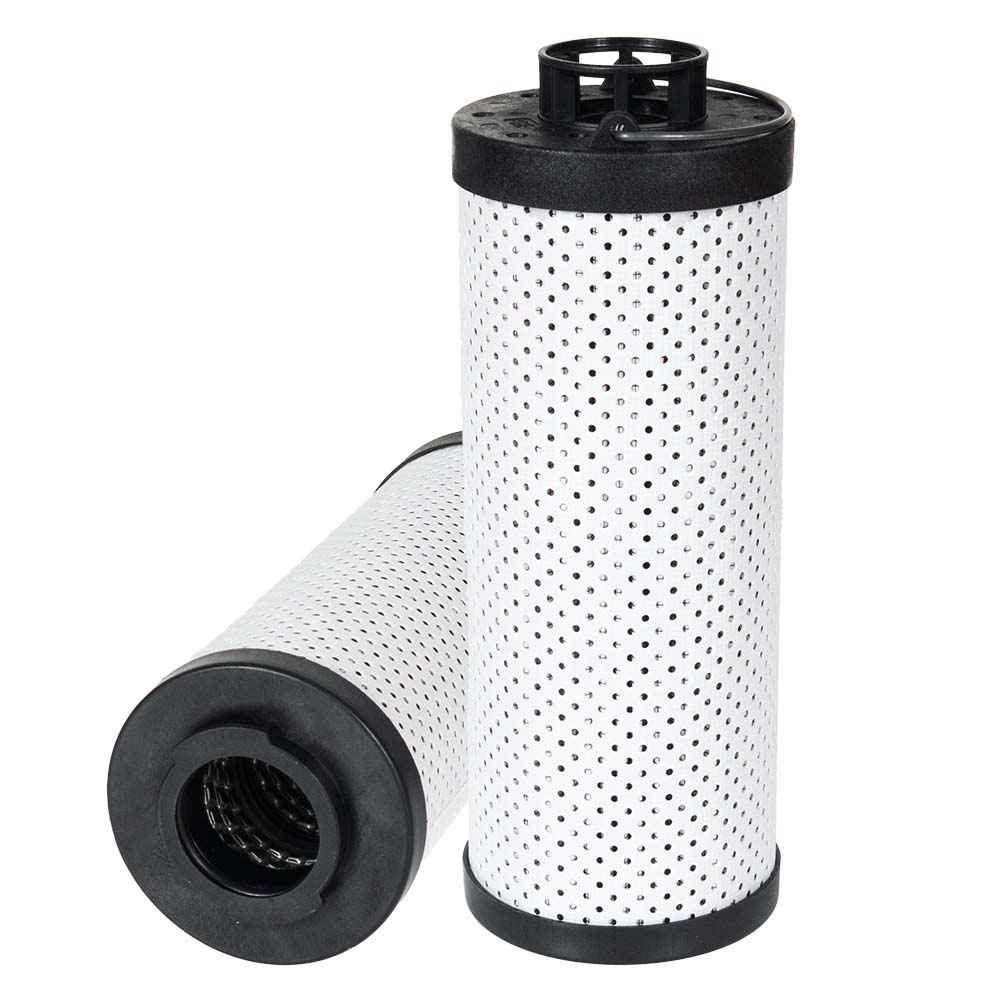

Representative product image Product image feedback

Stauff RE-070-N-10-B/2 Return Filter | Replaces the Stauff RE070D10B4

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >2

Price Match
$102.00
Germany
8421.99.90
0.68 lbs
0.051 ft³
France
8421.99.90
1.21 lbs
0.039 ft³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 203 Sealing: NBR, β ratio >2

Specification

StyleReturn Filter
MediaCellulose
Efficiency 110µ @ β2
Outer Diameter 2 7/8"
Inner Diameter 1 3/8"
Length 8"
Bypass Pressure 44 psi
Δ Collapse Pressure 290.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff RE-070-N-10-B/2

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 2.89 in
Inner Diameter 1.36 in
Length 7.99 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

44 PSI
Collapse Pressure 290 PSI
Seal Nitrile
Temperature Range -20 - +210°F
