Stauff RE-300-G-10-V/5 Replaces the Stauff RE300G10V5

Stauff RE300G10V5
Stauff RE300G10V5

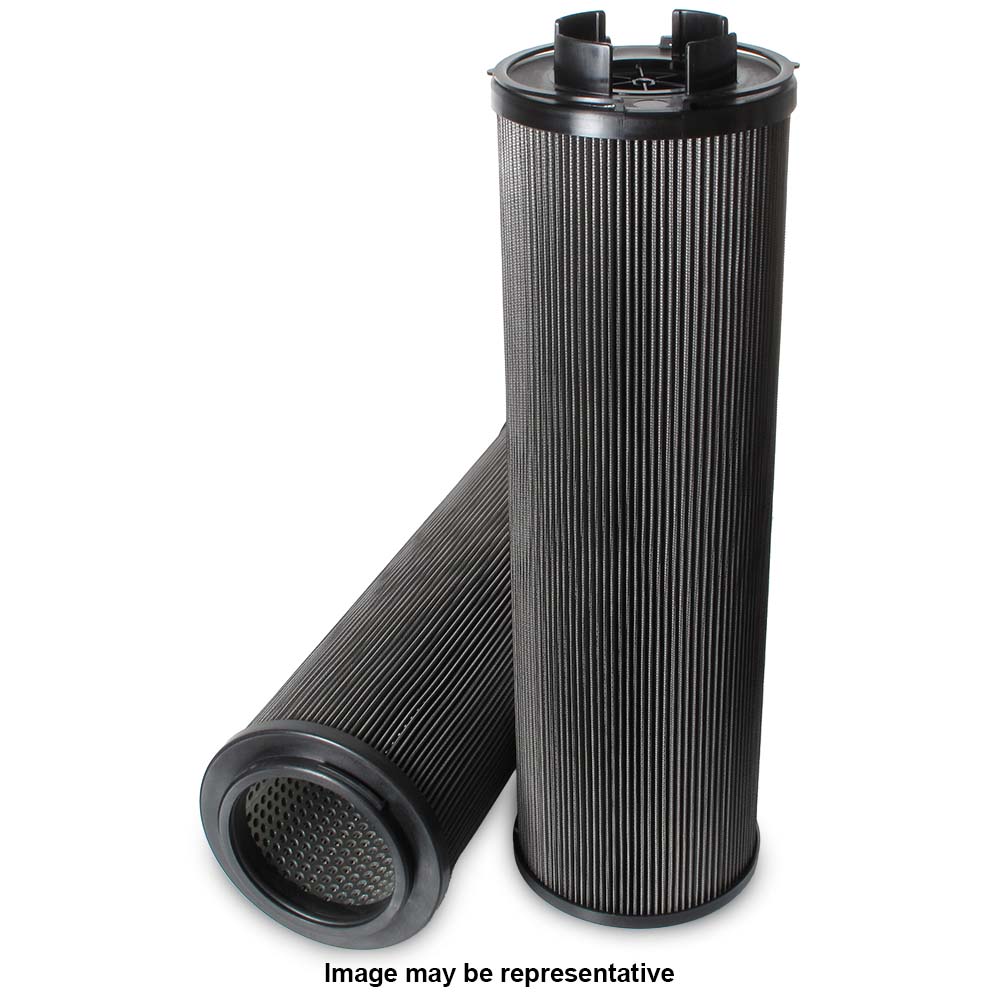

Representative product image Product image feedback

Stauff RE-300-G-10-V/5 Return Filter

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 483 Sealing: FPM, β ratio >200

Price Match
$418.00
Germany
8421.99.90
10.63 lbs
0.354 ft³
Italy
8421.99.90
8.51 lbs
0.53 ft³
France
8421.99.90
10.63 lbs
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 483 Sealing: FPM, β ratio >200

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 5 5/8"
Inner Diameter 3 13/16"
Length 19"
Bypass Pressure 44 psi
Δ Collapse Pressure 290.1 psi
Seal MaterialViton
Temperature Range -10 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff RE-300-G-10-V/5

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 5.65 in
Inner Diameter 3.8 in
Length 19.02 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

44 PSI
Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +210°F
