Summary

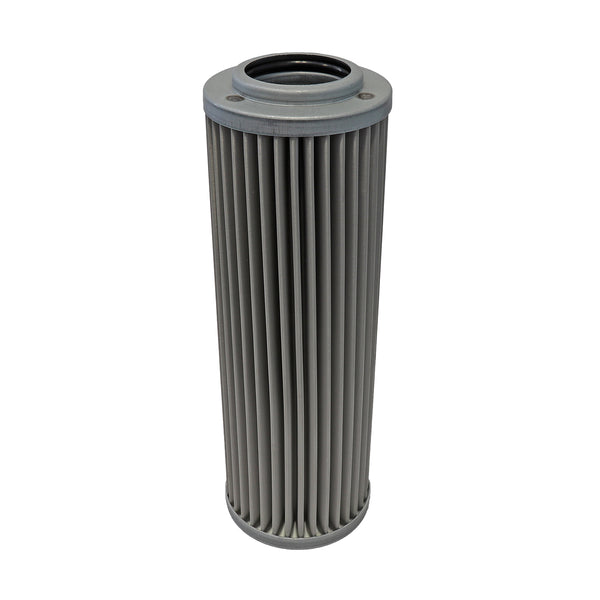

Stauff RL-130-B-25-B Replacement Return Filter

Stauff RL-130-B-25-B

Stauff RL-130-B-25-B Replacement Return Filter

RL-130-B-25-B
Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 25 µm Material: Stainless Mesh Outer Diameter (mm): 129,5 Inner Diameter (mm): 73,3 Length (mm): 483,5 Sealing: NBR, β ratio >2

Brand: Stauff
Price Matched
$1,049.00
Delivered Friday, May 23
UNITSPER UNIT
2 - 4$1,028.02
5 - 9$1,007.04
10 - + $986.06
5.65 lbs
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 25 µm Material: Stainless Mesh Outer Diameter (mm): 129,5 Inner Diameter (mm): 73,3 Length (mm): 483,5 Sealing: NBR, β ratio >2

Specification

StyleReturn Filter
Efficiency 125µ
Outer Diameter 5.12 in
Inner Diameter 2.89 in
Length 18.9 in
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 232 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff RL-130-B-25-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Return Filter
Outer Diameter 5.12 in
Inner Diameter 2.89 in
Length 18.9 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 232 PSI
Seal Nitrile
Temperature Range -20 - +210°F
