Summary

Fleetguard AF340 Replaces the National Filters RPL870046GV

RPL870046GV
RPL870046GV
Representative product image Product image feedback

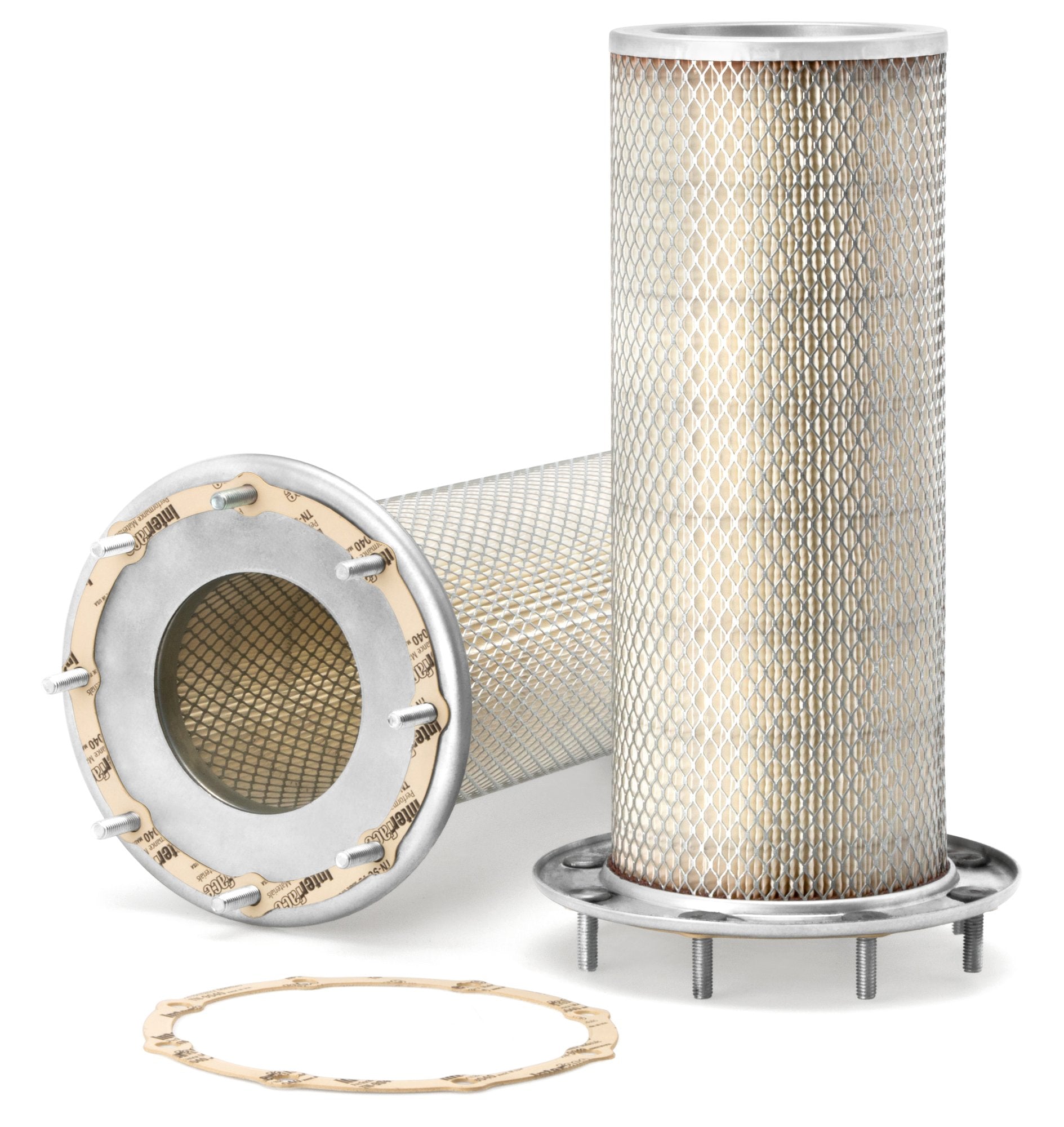

Fleetguard AF340 Air Filter, Secondary | Replaces the National Filters RPL870046GV

Brand: Fleetguard
Description

​Fleetguard® AF340 axial seal secondary air filter ensures a proper seal and prevent leaks to prevent airborne contaminants from reaching the combustion chamber.

Price Match
$71.00
5.11 lbs
1.218 ft³
Italy
8421.31.00
0.33 lbs
0.011 ft³
Italy
8421.99.90
Shipping Terms

Description

​Fleetguard® AF340 axial seal secondary air filter ensures a proper seal and prevent leaks to prevent airborne contaminants from reaching the combustion chamber.

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 1 15/16"
Inner Diameter 15/16"
Length 4 3/4"
Δ Collapse Pressure 290.1 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine National Filters RPL870046GV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Return Filter
Outer Diameter 1.97 in
Inner Diameter 0.96 in
Length 4.72 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +250°F
