MicroFit MFHHP40571 Replaces the Schroeder SBF0241DS1V

SBF0241DS1V
SBF0241DS1V
Representative product image Product image feedback

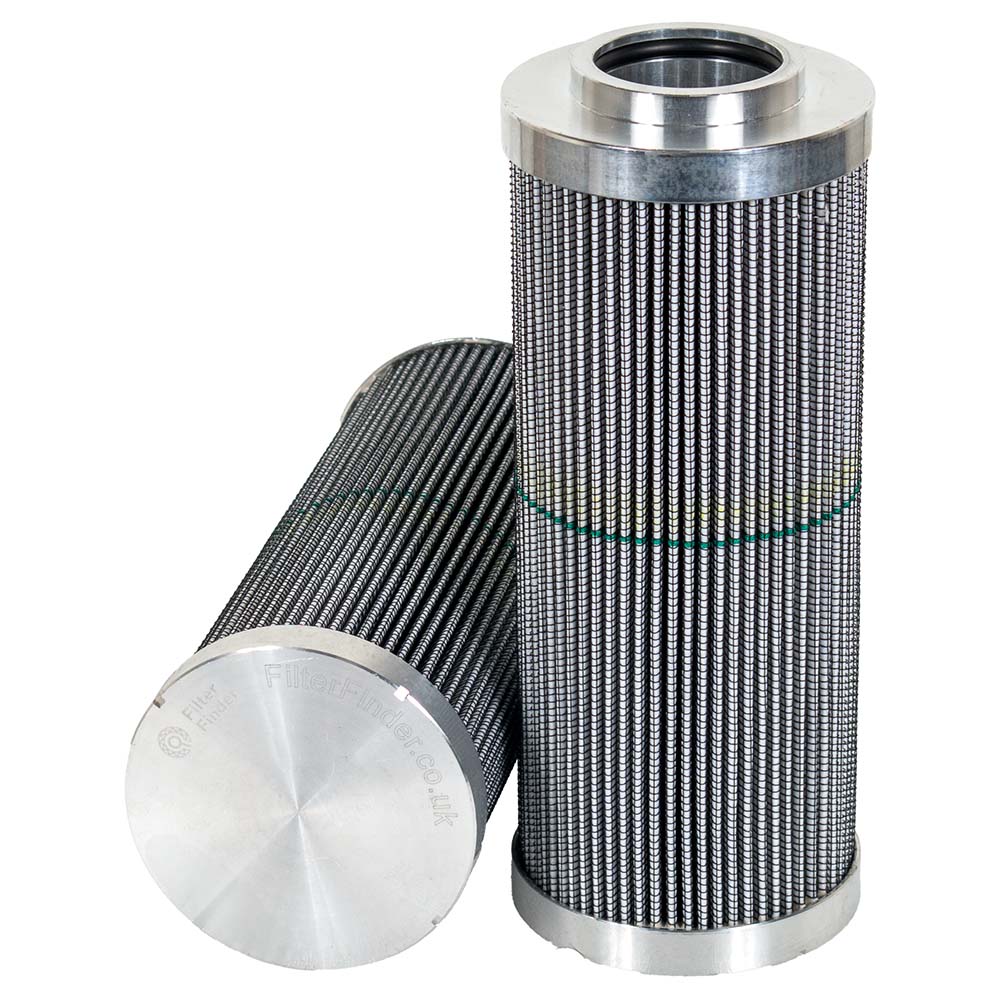

MicroFit® UltraGen III MFHHP40571 Pressure Filter | Replaces the Schroeder SBF0241DS1V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40571 is the MICROFIT® approved replacement to the Schroeder SBF0241DS1V. Engineered and manufactured in Great Britain the MFHHP40571

Price Match
$145.00
3.95 lbs
0.029 ft³
United Kingdom
8421.99.90
1.81 lbs
0.029 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40571 is the MICROFIT® approved replacement to the Schroeder SBF0241DS1V. Engineered and manufactured in Great Britain the MFHHP40571

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 2 11/16"
Inner Diameter 1 5/16"
Length 6 13/16"
Δ Collapse Pressure 3045.8 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF0241DS1V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 2.72 in
Inner Diameter 1.34 in
Length 6.81 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Viton
Temperature Range -10 - +250°F
