Summary

Stauff SD-010-K-10-B Replacement Pressure Filter

Stauff SD-010-K-10-B
Stauff SD-010-K-10-B

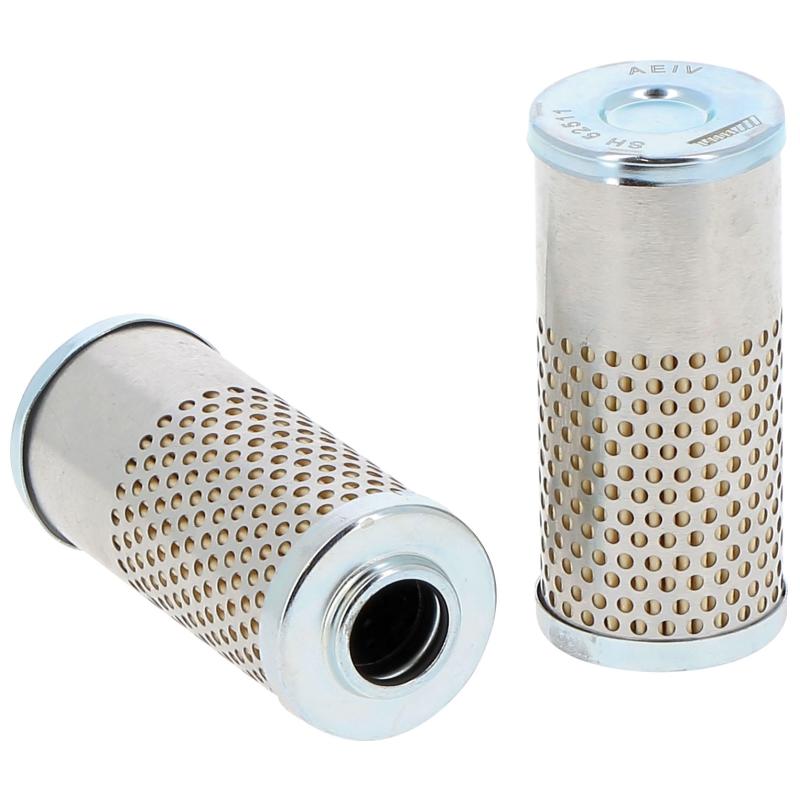

Representative product image Product image feedback

Stauff SD-010-K-10-B Pressure Filter

Brand: Stauff
Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 45,5 Inner Diameter (mm): 20,5 Length (mm): 103 Sealing: NBR, β ratio >2

Price Match
$62.00
2880 pcs
Germany
8421.99.90
0.37 lbs
0.01 ft³
2880 pcs
Italy
8421.29.80.90
0.31 lbs
0.017 ft³
2880 pcs
France
8421.99.90
0.29 lbs
0.008 ft³
2880 pcs
Italy
8421.99.90
0.38 lbs
0.01 ft³
2880 pcs
Italy
8421.23.00
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 45,5 Inner Diameter (mm): 20,5 Length (mm): 103 Sealing: NBR, β ratio >2

Specification

StylePressure Filter
MediaCellulose
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 1 13/16"
Inner Diameter 13/16"
Length 4 1/8"
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SD-010-K-10-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 1.79 in
Inner Diameter 0.81 in
Length 4.09 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
