Stauff SP-090-F-20-B/4 Replaces the Stauff SP090F20B
Stauff SP-090-F-20-B/4 Pressure Filter | Replaces the Stauff SP090F20B
SP-090-F-20-B/4
Stauff
Stauff SP090F20B
Stauff
Stauff SP090F20B
Brand:
Stauff
Description

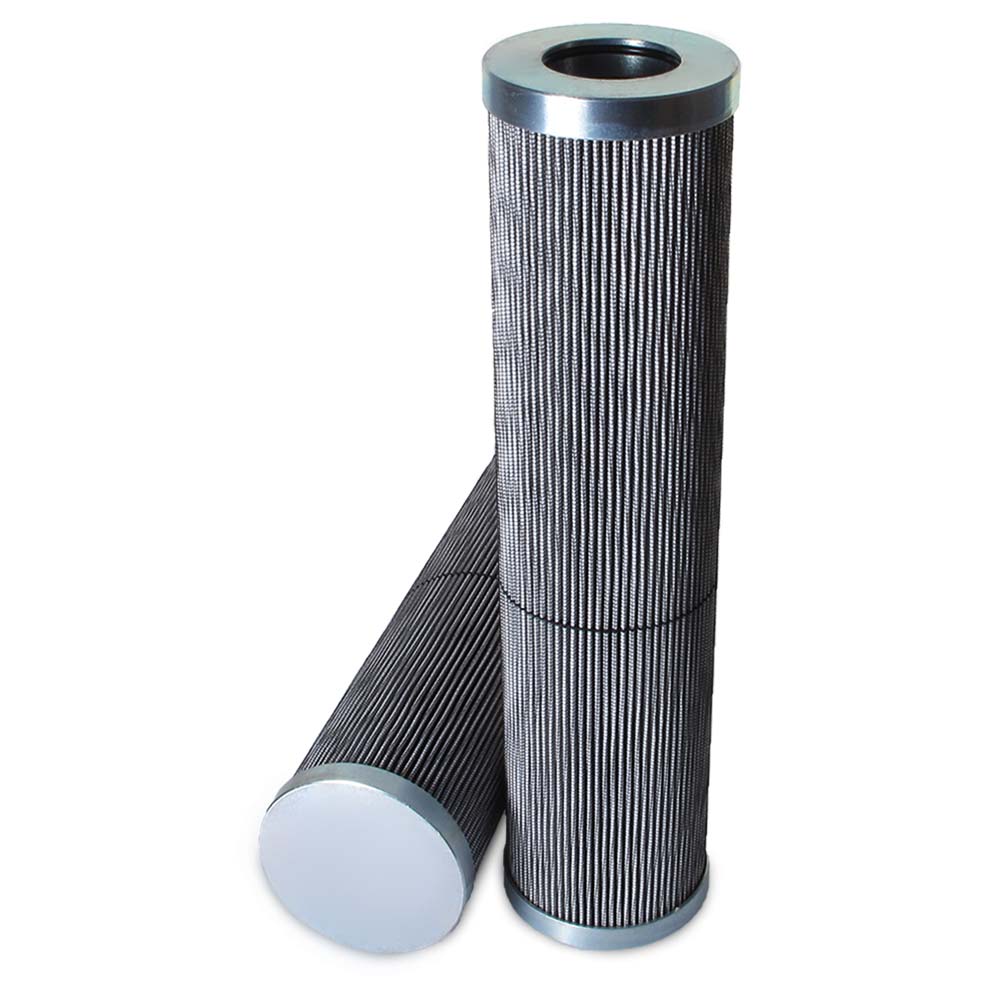

Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 80 Inner Diameter (mm): 43,5 Length (mm): 329 Sealing: NBR, β ratio >200
Regular price
$416.00
Unit price
per
56 pcs
Germany
8421.99.90
8.46 lbs
0.071 ft³
56 pcs
United Kingdom
8421.99.90
3.84 lbs
0.071 ft³
56 pcs
Italy
8421.99.90
4.67 lbs
0.124 ft³
56 pcs
France
8421.99.90
4.59 lbs
0.238 ft³
56 pcs
United States
8421.29.80.90
3.97 lbs
0.795 ft³
56 pcs
Mexico
8421.23.00
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 80 Inner Diameter (mm): 43,5 Length (mm): 329 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 3 1/16" |
| Inner Diameter | 1 11/16" |
| Length | 13" |
| Δ Collapse Pressure | 3045.8 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
