Stauff SP-140-E-10-B/4 Replaces the Stauff SP140E10B4

Stauff SP140E10B4
Stauff SP140E10B4
Representative product image Product image feedback

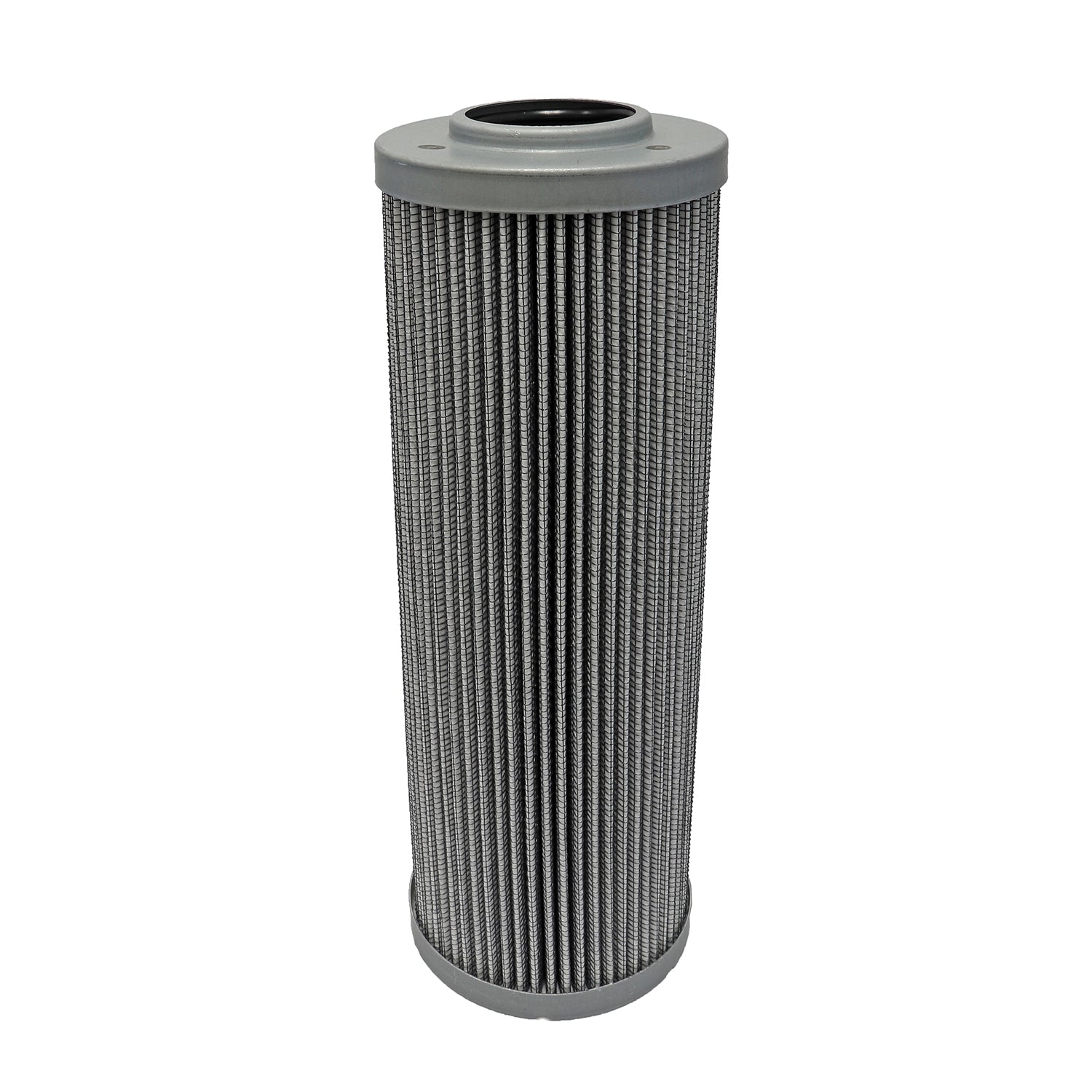

Stauff SP-140-E-10-B/4 Pressure Filter

Brand: Stauff
Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 55,7 Length (mm): 329 Sealing: NBR, β ratio >200

Price Match
$211.00
Germany
8421.99.90
6.12 lbs
0.107 ft³
United Kingdom
8421.99.90
2.78 lbs
0.107 ft³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 55,7 Length (mm): 329 Sealing: NBR, β ratio >200

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 3/4"
Inner Diameter 2 1/4"
Length 12 15/16"
Δ Collapse Pressure 362.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SP-140-E-10-B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 3.78 in
Inner Diameter 2.22 in
Length 12.91 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 363 PSI
Seal Nitrile
Temperature Range -20 - +210°F
