Stauff SUS-050-G08-105-125-P-O Replaces the Stauff SUS050G08105125PO

Stauff SUS050G08105125PO
Stauff SUS050G08105125PO

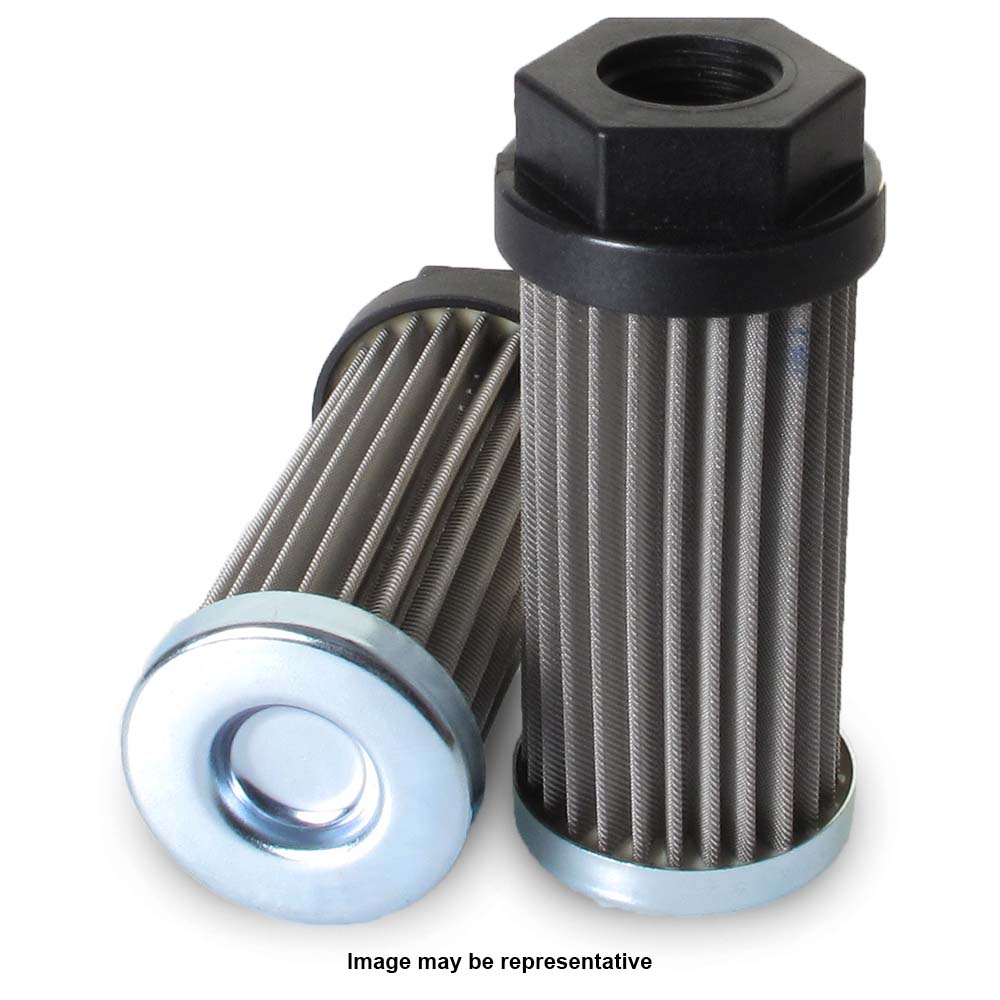

Representative product image Product image feedback

Stauff SUS-050-G08-105-125-P-O Suction Strainer

Brand: Stauff
Description

Suction Strainer with Polyamide End Cap Micron Rating: 125 µm without Bypass Thread: 1/2"BSP

Price Match
$14.00
288 pcs
Germany
8421.99.90
0.18 lbs
0.008 ft³
288 pcs
Italy
8421.99.90
0.35 lbs
0.012 ft³
288 pcs
France
8421.99.90
0.37 lbs
0.051 ft³
288 pcs
United States
8421.29.80.90
288 pcs
Germany
8421.99.90
Shipping Terms

Description

Suction Strainer with Polyamide End Cap Micron Rating: 125 µm without Bypass Thread: 1/2"BSP

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 1 13/16"
Length 4 3/16"
Thread1/2" BSP
Δ Collapse Pressure 14.5 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SUS-050-G08-105-125-P-O

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 1.81 in
Inner Diameter
Length 4.17 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1/2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 15 PSI
Seal Nitrile
Temperature Range -20 - +210°F
