MicroFit MFHSU70326 Replaces the Pall UE319AT08H

MICROFIT MFHSU70326
MICROFIT MFHSU70326
Representative product image Product image feedback

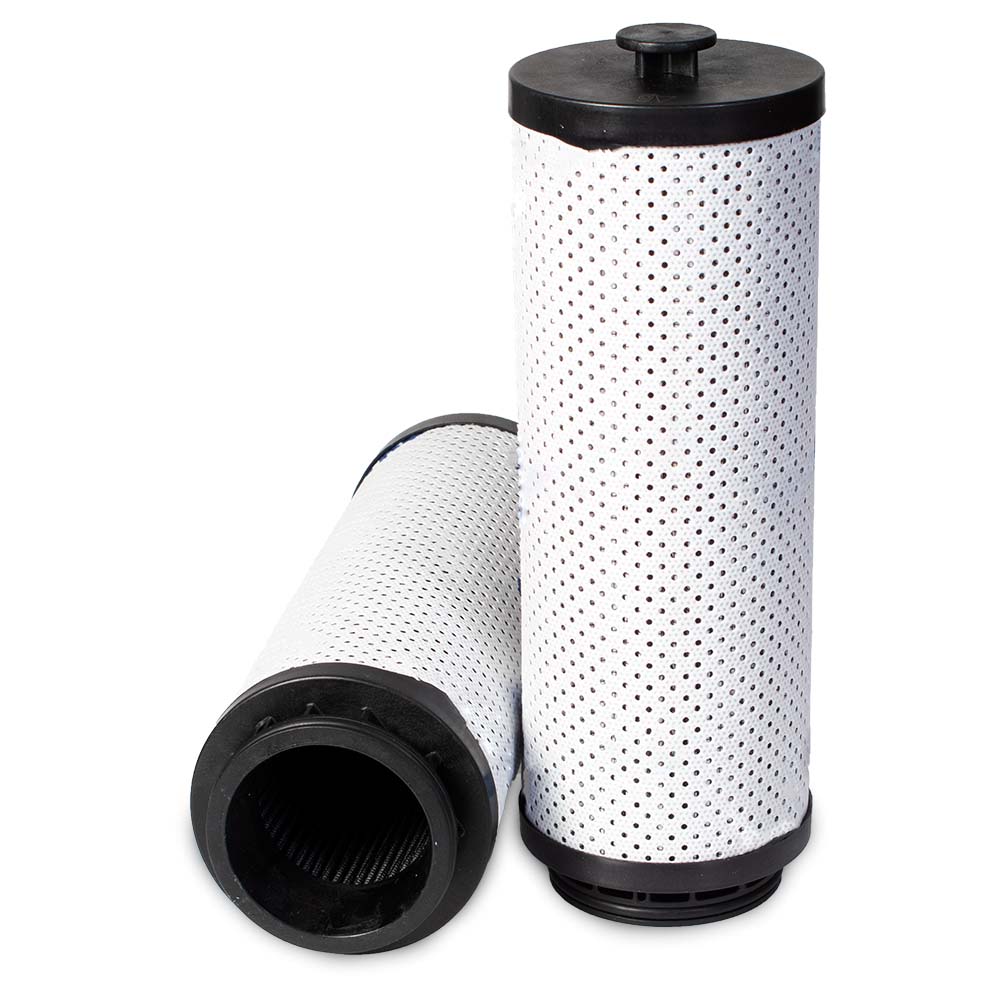

MicroFit® UltraGen III MFHSU70326 Suction Filter | Replaces the Pall UE319AT08H

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70326 is the MICROFIT® approved replacement to the Pall UE319AT08H. Engineered and manufactured in Great Britain the MFHSU70326

Price Match
$136.00
1.85 lbs
0.051 ft³
United Kingdom
8421.99.90
0.86 lbs
0.051 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70326 is the MICROFIT® approved replacement to the Pall UE319AT08H. Engineered and manufactured in Great Britain the MFHSU70326

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 1/8"
Inner Diameter 2 1/2"
Length 9 1/8"
Seal MaterialNitrile
Temperature Range -20 - +210°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE319AT08H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Suction Filter
Outer Diameter 3.11 in
Inner Diameter 2.5 in
Length 9.15 in
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -20 - +210°F
